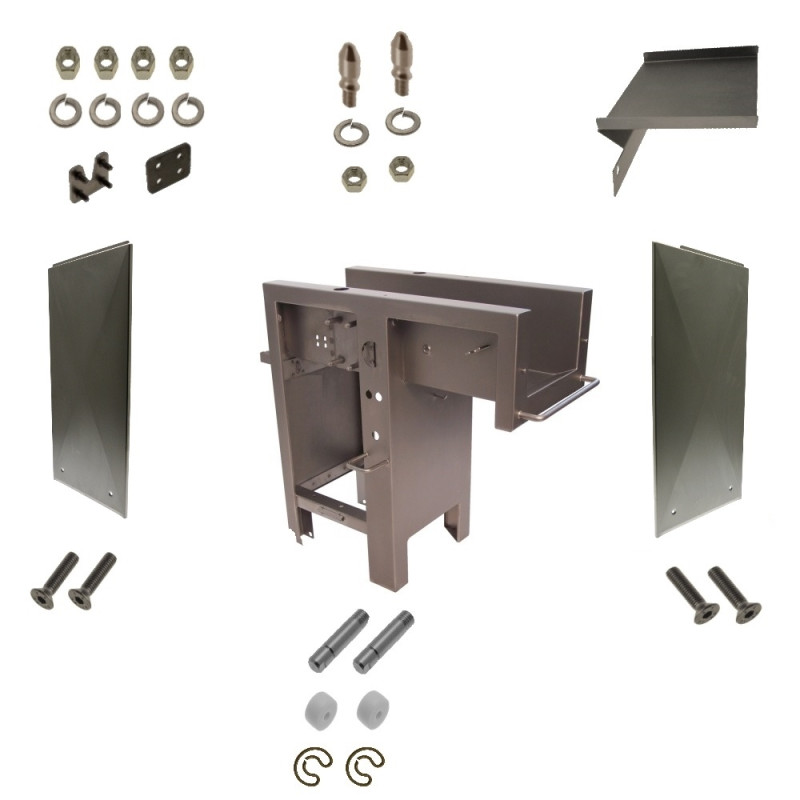

Rack Assembly Ruhle PR15 No. 3649 and higher Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F40003 | rack | PR 8-15 | 1 |
 |
2 | F41802 | Bracket | PR 8 - 20 | 2 |
 |
3 | F24031 | Spring lock washer | DIN127 B 6 | 8 |
 |
4 | F20203 | Hexagonal nut | DIN934 M 6 | 8 |
 |
5 | F21853 | plate / sheet | 62 x 47 x 4 | 2 |
 |
6 | F21869 | bolt | Ø 12 x 33 | 2 |
|
7 | F20259 | Hexagonal nut | DIN934 M 8 | 2 |
|
8 | F21260 | Spring lock washer | DIN127 B 8 | 2 |
 |
9 | F21262 | Annular spring | Ø 12 x Ø 30 x 2,2 | 2 |
 |
10 | F21259 | Rolle | Ø 16,5 x Ø 65 x 35 | 2 |
 |
