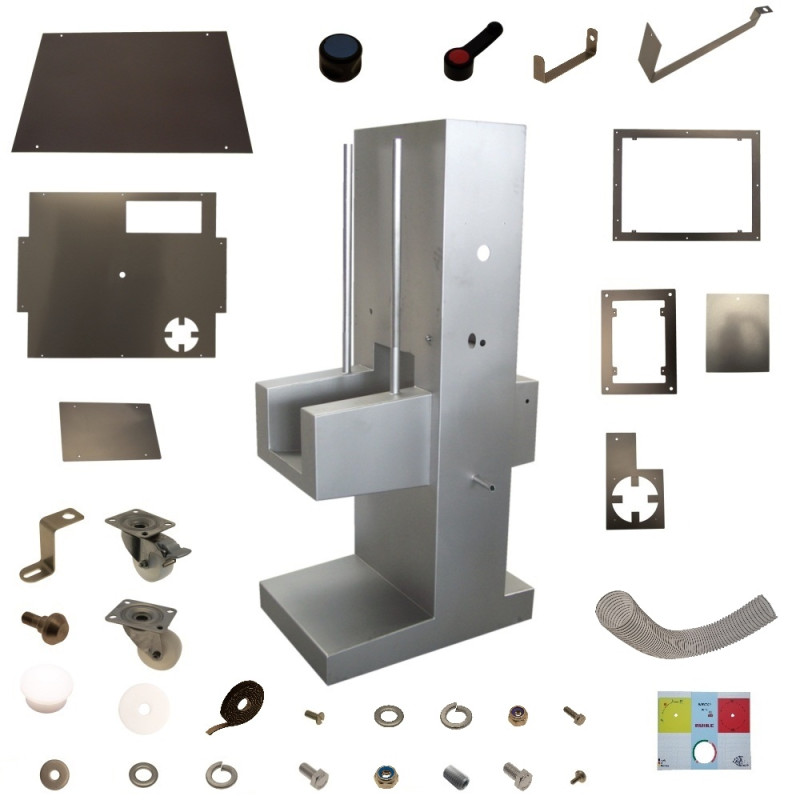

Gestell Assembly for Ruhle IR17 Meat Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
2 | 108896 | Frame | 660 x 500 x 2,5 | 1 |
 |
3 | 108897 | Frame | 220 x 160 x 2,5 | 1 |
 |
4 | 108902 | Lid | 599 x 439 x 1,5 | 1 |
 |
5 | 108904 | Lid | 180 x 120 x 2,5 | 1 |
 |
6 | F25828 | Countersunkbolt | DIN963 M 4 x 10 | 8 |
 |
7 | 109410 | Plate/sheet | 720 x 570 x 25,5 x 0,5 | 1 |
 |
8 | 109060 | Plug | Ø 30 x 27,5 | 2 |
 |
9 | 109123 | Pin | Ø 17 x 20 | 1 |
 |
10 | 109350 | Pin | Ø 15 x 23 | 2 |
 |
11 | 109533 | Plate/sheet | 250 x 150 x 26,5 x 1,5 | 1 |
 |
12 | 110038 | Hose | Ø 120 x 1040 | 1 |
 |
13 | 109570 | Plate/sheet | 185 x 149 x 1,5 | 1 |
 |
14 | F240681a | Bracket | 85,5 x 63 x 30 x 2,5 | 1 |
 |
15 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 14 |
 |
16 | 106966 | Guide roller | LEX-PO-75G-FI | 2 |
 |
17 | 109242 | Guide roller | LEX-PO-75G | 2 |
 |
18 | F22888 | Washer | DIN125 A 8,4 | 16 |
 |
19 | F21260 | Spring lock washer | DIN128 A 8 | 16 |
 |
20 | F21281 | Hexagonal bolt | DIN933 M 8 x 16 | 16 |
 |
21 | 109583 | Bracket | 366 x 104 x 92,7 x 2 | 1 |
|
22 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
|
23 | F20258 | Washer | DIN125 A 6,4 | 13 |
 |
24 | F250798 | Hexagonal nut | DIN985 M 6 | 19 |
|
25 | F26993 | Hexagonal bolt | DIN933 M 5 x 10 | 10 |
 |
26 | 108699 | Hexagonal bolt | DIN933 M 4 x 12 | 4 |
 |
27 | F250796 | Hexagonal nut | DIN985 M 4 | 4 |
 |
28 | 109362 | Knob | Ø 50 x 38 | 1 |
 |
29 | 109674 | Shifter | Ø 32 x 35 | 1 |
 |
30 | 109671 | Disc | Ø 7 x Ø 30 x 1 | 2 |
 |
31 | F20640 | Threaded pin | DIN916 M 5 x 8 | 2 |
 |
32 | 109482 | Seal | 9 x 2 schwarz | 3600 mm |
 |
33 | 109833 | Plate/Sheet | 89,5 x 32 x 14 x 1,5 | 1 |
 |
34 | 109864 | Sticker | 248 x 192 | 1 |
