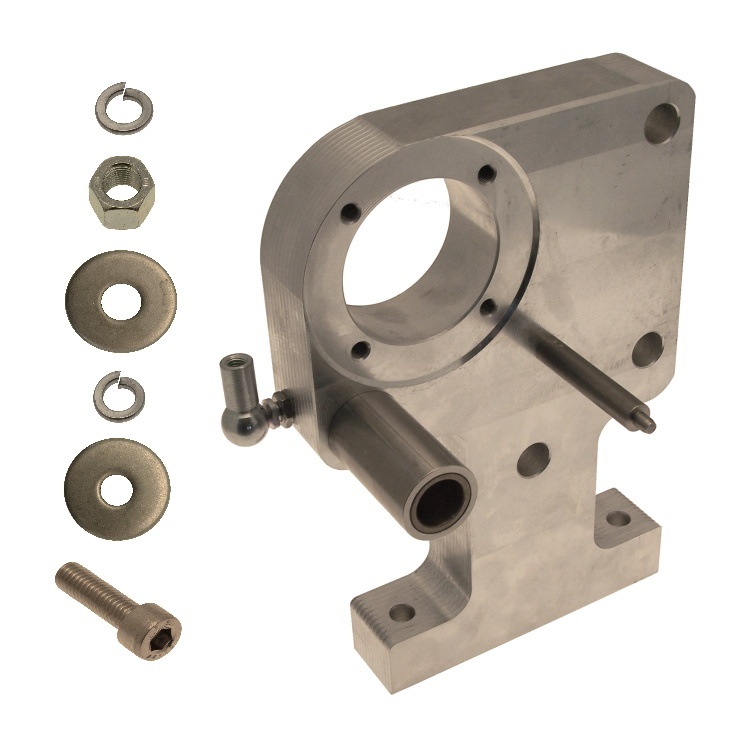

Name: Housing Complete SR2 Turbo No. 435
Brand: Ruhle
SKU: Ina Aldrian
Availability: On Order

Housing Complete SR2 Turbo No. 435

Housing Complete for Ruhle SR2 Turbo No. 435 Pos No. Part No. Descripti... Read More

Stock: On Order
Brand: Ruhle
Type: F41396

Available Options

Housing Complete SR2-Turbo No. 435

Qty

Request Quote

From Same Category
Same Brand

Quickview

Conveyor Belt Assembly SR2 Dicer No. 435

View Details Request Quotes

Quickview

Conveyor Belt Complete SR2 Dicer No. 435

View Details Request Quotes

Quickview

Drive complete Dicer SR2 103685

View Details Request Quotes

Quickview

Drive Exploded View SR2 Dicer F441364ex

View Details Request Quotes

Quickview

Rolle Exploded View SR2 Turbo Dicer

View Details Request Quotes

Description
Specifications

Housing Complete for Ruhle SR2 Turbo No. 435

Pos No.	Part No.	Description	Add Info	Required
1	F240656	Plate	330 x 225 x 48	1
2	F240567	Bushing	Ø 32 x Ø 40 x 120	1
3	F24965	Slide bushing	DIN1850 Ø 25 x Ø 32 x 35	2
4	F21426	Bolt	Ø 15 x 98	1
5	F29216	Joint bearing head	10 mm	2
6	F29013	Threaded rod	M 10 x 98	1
7	F20047	Hexagonal nut	DIN439 M 10	1
8	F23692	Radial shaft seal	Ø 25 x Ø 35 x 6	1
9	F28773	Cylinder head screw	DIN912 M10 x 70	2
10	F22907	Washer	Ø 10,5 x Ø 35 x 3	2
11	F26379	Spring lock washer	DIN127 B 10	2
12	F24901	Washer	Ø 12,5 x Ø 35 x 3	2
13	F20204	Hexagonal Nut	DIN934 M 12	2
14	F20210	Spring lock washer	DIN127 A 12	2
