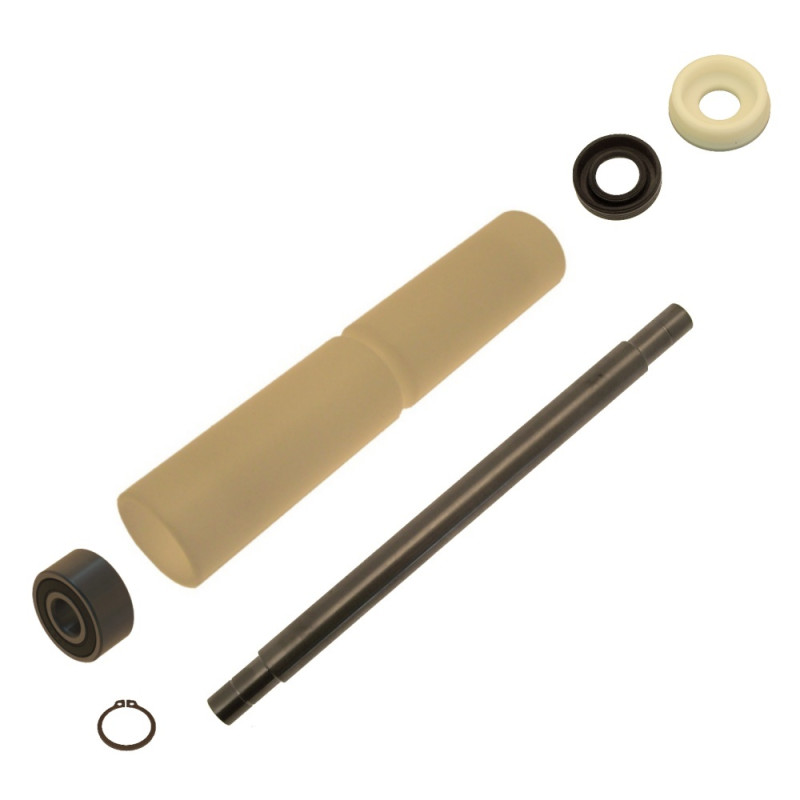

Rolle Exploded View SR2 Turbo Dicer

Type: F458537
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 910

* Rolle Exploded View SR2-Turbo No. 435:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rolle Exploded View SR2 Turbo Dicer

Type: F458537
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 910

* Rolle Exploded View SR2-Turbo No. 435:
--F21405 Shaft
--F21404 Bushing
--F26877 Tapered ball bearing
--F20536 Locking ring
--F21406 Take-up ring
--F21424 Radial shaft seal

Rolle Exploded View for Ruhle SR2 Turbo Meat Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F21405	Shaft	Ø 18 x 274	1
2	F21404	Bushing	Ø 20 x Ø 42 x 268	1
3	F26877	Tapered ball bearing	DIN628 - 3202 2RS	2
4	F20536	Locking ring	DIN471 Ø 15 x 1	2
5	F21406	Take-up ring	Ø 38 x 11,7	2
6	F21424	Radial shaft seal	Ø 15 x Ø 28 x 7	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Rolle Exploded View for Ruhle SR2 Turbo Meat Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F21405	Shaft	Ø 18 x 274	1
2	F21404	Bushing	Ø 20 x Ø 42 x 268	1
3	F26877	Tapered ball bearing	DIN628 - 3202 2RS	2
4	F20536	Locking ring	DIN471 Ø 15 x 1	2
5	F21406	Take-up ring	Ø 38 x 11,7	2
6	F21424	Radial shaft seal	Ø 15 x Ø 28 x 7	2
