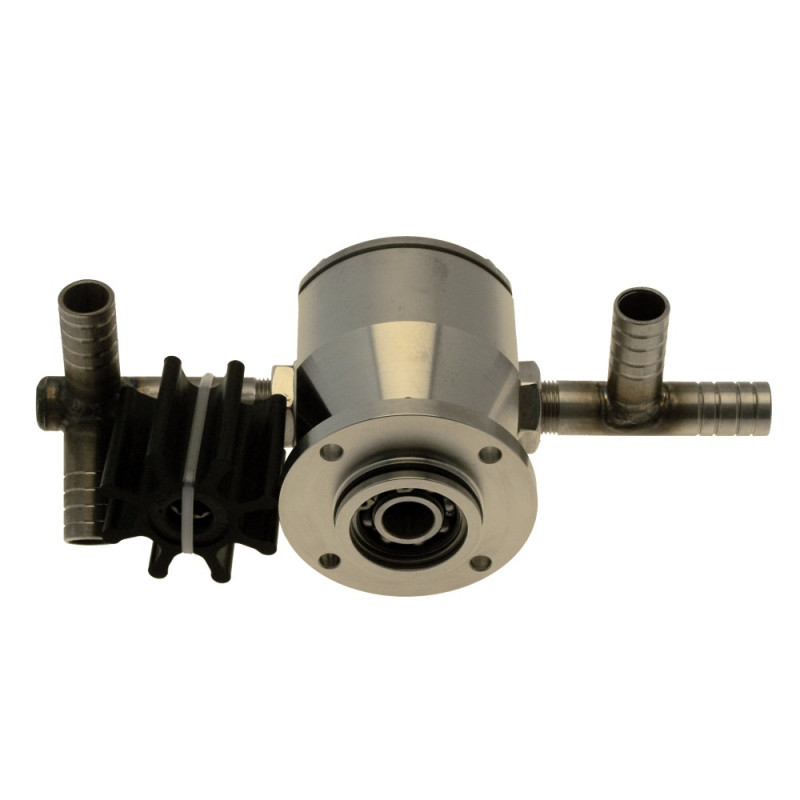

Impeller Pump Exploded View

Type: F40254
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1839
* Impeller Pump Exploded View PR 8:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F247398 Housing Ø 16,4 x Ø 89 x 97,8 1
2 F447402 Tube PR 8 - 20 1
3 F447399 Tube PR 8 - 20 1
4 F248182 Lid Ø 90 x 4 1
5 F20155 Impeller M 401 M401 1
6 F41281 Sealing set VA-pump M 401 1
7 F20163 Hexagonal bolt DIN933 M 5 x 12 4
8 F26897 Hexagonal nut DIN439 M 20 x 1,5 2
