Impellerpumpe Exploded View Ruhle PR10 Injector No. 2515 and Higher
- Stock: On order
- Brand: Ruhle
- Type: F40254

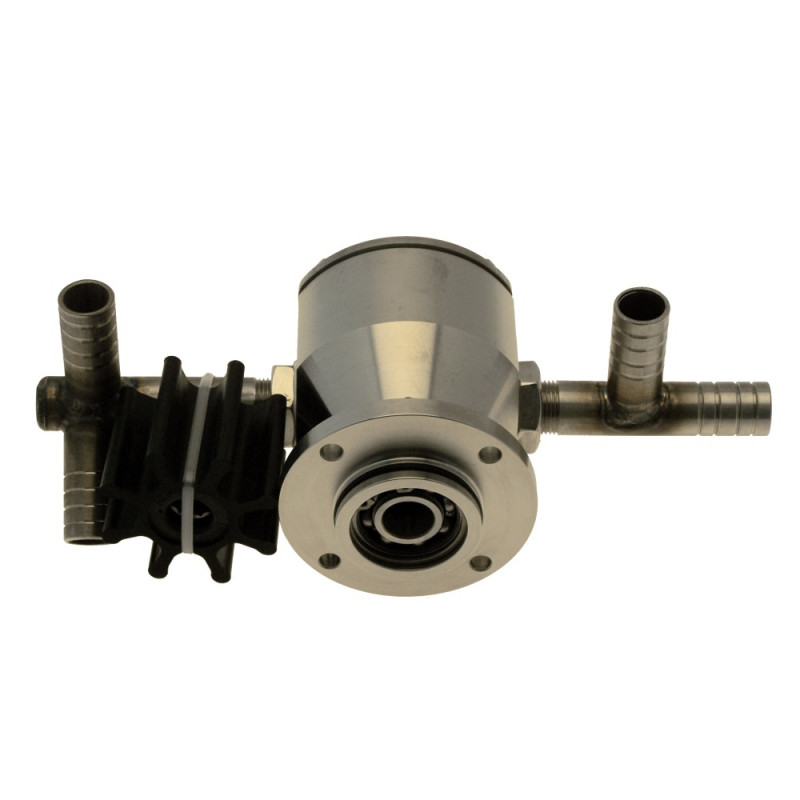

Impeller Pump Exploded View Ruhle PR10 Injector No. 2515 and Higher
| Pos No. | Part No. | Description | Add Info. | Required | |
 |
1 | F247398 | Housing | Ø 16,4 x Ø 89 x 97,8 | 1 |
 |
2 | F20162 | Radial-Wellendichtring | Ø 16 x Ø 28 x 7 | 1 |
 |
3 | F20160 | Sicherungsring | DIN472 Ø 30 x 1,2 | 1 |
 |
4 | F28028 | Radial-Wellendichtring | DIN472 Ø 30 x 1,2 | 1 |
 |
5 | F26569 | Rillenkugellager | DIN625 - 6203 1Z | 1 |
 |
