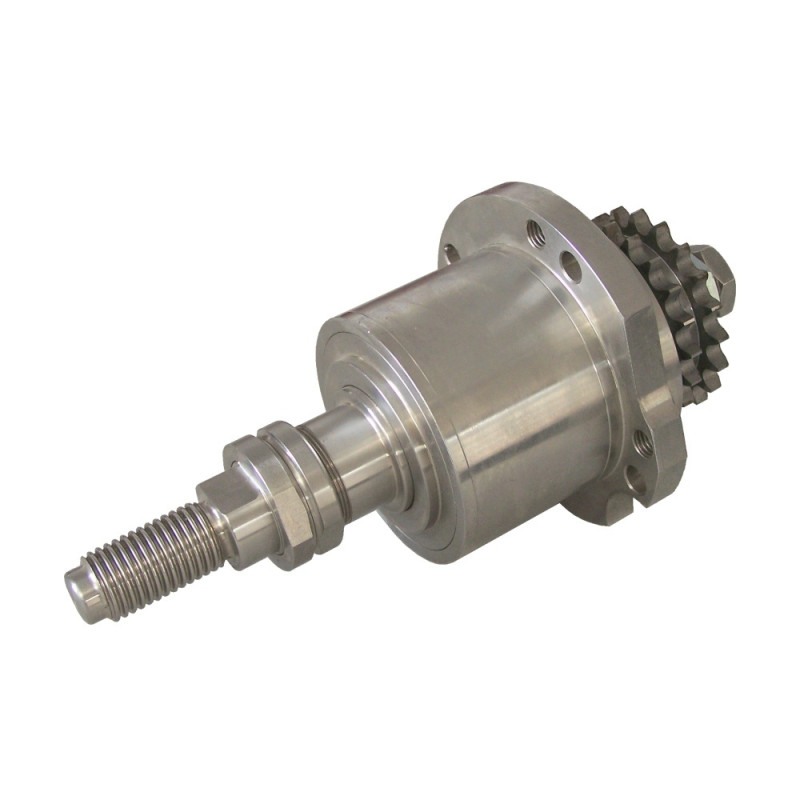

Knife Shaft Complete SR3 Dicer No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F445295 | bushing | SR 3 | 1 |
 |
2 | F247812 | Knife shaft | Ø 50 x 288 | 1 |
 |
3 | F26819 | Nut | M 40 x 1,5 x Ø 50 x 11 | 1 |
 |
4 | F27129 | Nut | M 40 x 1,5 x Ø 50 x 11 | 1 |
 |
5 | F28205 | Ring | Ø 40,5 x Ø 60 x 10 | 1 |
 |
6 | F26886 | Chain wheel | Ø 35.7 x Ø 85.8 x 21 | 1 |
 |
7 | F26798 | Disc | Ø 20,5 x Ø 60 x 5 | 1 |
 |
8 | F20450 | Hexagonal nut | DIN934 M 20 x 1,5 | 1 |
 |
9 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 1 |
 |
10 | F28207 | Disc | Ø 58 x Ø 87.5 x 3 | 1 |
 |
11 | F28208 | Spacers | Cylinder head screw | 1 |
 |
12 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
13 | F23173 | Cylinder head screw | DIN912 M10 x 40 | 4 |
