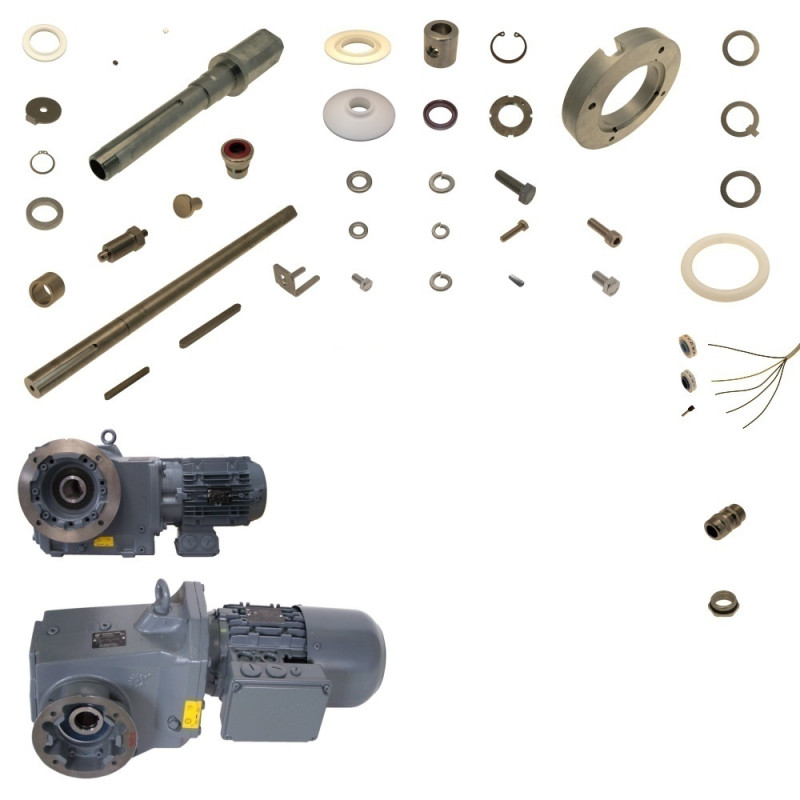

Mischsystem Assembly
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | 107927 | Flansch | Ø 60,2 x Ø 90 x 10 | 1 | |
 |
2 | 108154 | Antriebswelle | MGR 400 | 1 | |
 |
3 | 107923 | Flansch | Ø 90 x Ø 180 x 20 | 1 | |
 |
4 | 107926 | Buchse | Ø 35 x Ø 120 x 30 | 1 | |
 |
5 | 107925 | Buchse | Ø 30 x Ø 60 x 70 | 1 | |
 |
6 | F25062 | Radial-Wellendichtring | Ø 60 x Ø 80 x 7 | 3 | |
 |
7 | F23221 | Sicherungsring | DIN472 Ø 80 x 2,5 | 1 | |
 |
8 | 107930 | Flansch | Ø 110 x Ø 200 x 30 | 1 | |
 |
9 | 107931 | Mutter | M 48 x 1,5 x Ø 80 x 8 | 2 | |
 |
10 | 107933 | Ring | Ø 50,2 x Ø 70 x 3 | 1 | |
 |
11 | 107934 | Schaltfahne | Ø 50,3 x Ø 70 x 5 | 1 | |
 |
12 | 107929 | Ring | Ø 50,4 x Ø 70 x 10 | 1 | |
 |
13 | 107936 | Welle | Ø 35 x 787 | 1 | |
 |
14 | 107935 | Schaltfahne | Ø 10,5 x Ø 50 x 5 | 1 | |
 |
15 | F20263 | Sicherungsring | DIN471 Ø 35 x 1,5 | 1 | |
 |
16 | 107932 | Ring | Ø 35,4 x Ø 50 x 10 | 1 | |
 |
17 | F20202 | U-Scheibe | DIN125 A 13 | 4 | |
 |
18 | F20210 | Federring | DIN127 A 12 | 4 | |
 |
19 | F20230 | Sechskantschraube | DIN933 M12 x 40 | 2 | |
 |
20 | F21042 | Sechskantschraube | DIN933 M12 x 30 | 2 | |
 |
21 | F22888 | U-Scheibe | DIN125 A 8,4 | 4 | |
 |
22 | F21260 | Federring | DIN127 B 8 | 5 | |
 |
23 | F20449 | Sechskantschraube | DIN933 M 8 x 30 | 4 | |
 |
24 | F27479 | Zylinderschraube | DIN912 M10 x 35 | 4 | |
 |
25 | 108143 | Buchse | Ø 21 x Ø 28 x 22 | 1 | |
 |
26 | F445613 | Rastbolzen | GN 617-10-G-NI | 1 | |
 |
27 | F245615 | Pilzknopf | K3025 308 M8 VA | 1 | |
 |
28 | F22449 | Sechskantschraube | DIN933 M 8 x 20 | 1 | |
 |
29 | 108159 | Winkel | 28,8 x 22,5 x 21,6 x 2 | 1 | |
 |
30 | 108157 | Paßfeder | A 14 x 9 x 150 | 1 | |
 |
31 | F26379 | Spring lock washer | DIN127 B 10 | 1 | |
 |
32 | F28009 | Paßfeder | A 10 x 8 x 100 | 1 | |
 |
33 | F25432 | Gewindestift | DIN914 M 6 x 10 | 1 | |
 |
34 | F22138 | Sechskantschraube | DIN933 M10 x 25 | 1 | |
 |
35 | 108182 | Dichtung | Ø 128 x 96 x 16 | 1 | |
 |
36 | 107617 | Getriebemotor | SK9032.1AF-100L/4 TF OL/H | 1 | |
 |
37 | 107618 | Getriebemotor + Bremse | SK92672AF-80L/6 BRE10 RG TF | 1 | |
 |
38 | 104154 | Reduzierung | MS-Reduktion M25/M20x1,5 | 2 | |
 |
39 | 104152 | Kabelverschraubung | PERFECT-KV-EMV M20x1,5 | 2 | |
 |
40 | 107817 | Initiator | IFRM 08P13G1/S35L | 1 | |
 |
41 | 108257 | Kabel zu Initiator | PVC-OB 3 x 0,25mm² | 1 | |
 |
42 | 108278 | Kabel für Bremsgleichrichter | MGR 400/900 | 1 | |
 |
43 | F27081 | Initiator | KIN-M12PS/004 KL6 | 1 |
