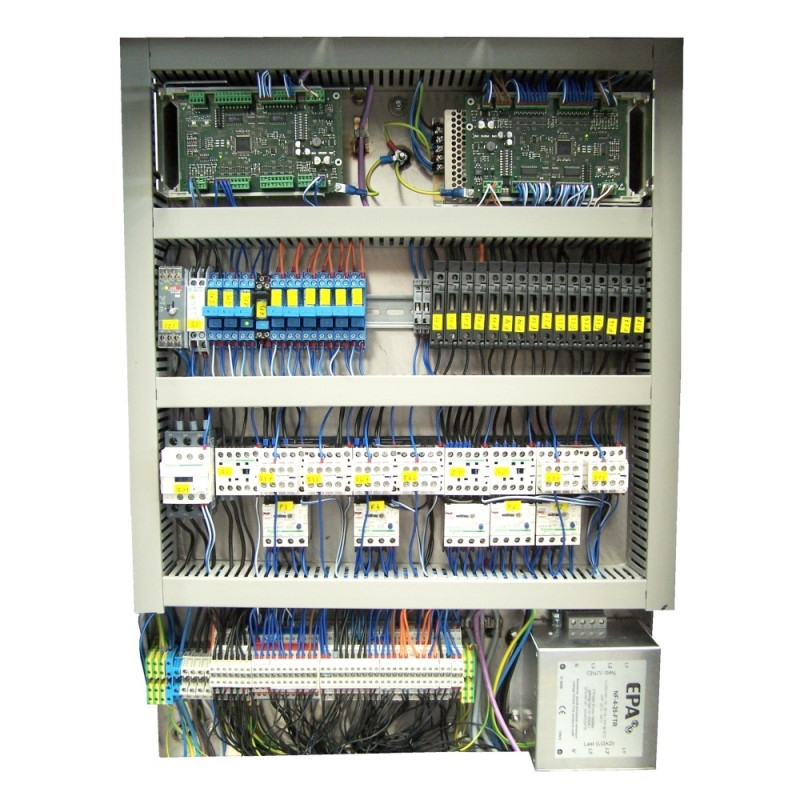

Montageplatte Complete
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | 108819 | Montageplatte | MGR 400 | 1 |
 |
1,1 | F28731 | Kabelkanal | 80 x 30 x 2000 | 2 |
|
2 | F28731 | Kabelkanal | 80 x 30 x 2000 | 1,8 |
 |
4 | F27057 | Phase sequence relay | IK 9179 | 1 |
 |
5 | F22283 | Motorschutzrelais 1,8 - 2,6A | LR 2-K0308 | 2 |
 |
6 | F20912 | Motor protect. relay 1.2 -1.8A | LR 2-K0307 | 2 |
 |
7 | F27076 | Motorschutzrelais 3,7 - 5,5A | LR 2-K0312 | 1 |
 |
8 | 106533 | I/O board | 16DI/16DO/2AI/2AO/PT100 I | 2 |
 |
9 | F27072 | Zeitrelais | CT-ARE | 1 |
 |
10 | F41540 | Relay | 1 We / 24 VDC / 10A | 10 |
 |
11 | 101590 | Leistungsschütz 24VDC | LC1 D25 BD | 1 |
 |
12 | F20916 | turn contactor | LP2-KO910 BD3 | 3 |
 |
13 | 106925 | Hilfsschalterblock | LA1 KN22 | 6 |
 |
14 | F27091 | Power contactor 24VDC | LP1-K0910 BD3 | 3 |
 |
15 | 108013 | Netzfilter 36A | EPA NF-4-36-FTR | 1 |
 |
16 | 108267 | grounding cable | I/O board | 2 |
 |
17 | F27618 | Circuit board holder | 208000 032 | 2 |
 |
18 | 109047 | Klemmleiste | MGR 400 / 900 / 1500 | 1 |
 |
19 | F27066 | Sicherungsklemme schwarz | 6,4 x 32 mm | 15 |
 |
20 | 104292 | Trenn-Grund-Sicherungsklemme | 4mm² | 2 |
 |
21 | 104293 | Sicherungstrennhebel | THSI 5x20 GL250 | 2 |
 |
22 | F28410 | Power supply 230VAC/24VDC | S-60-24 MW | 1 |
 |
23 | 108706 | Sicherungsautomat | 6A, 1-polig, +N | 1 |
