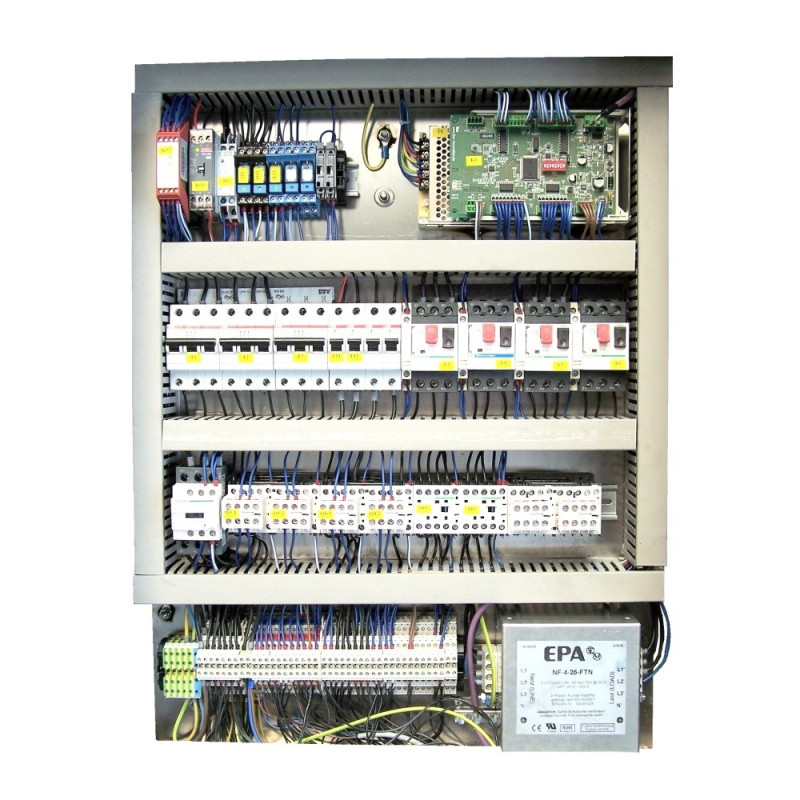

Montageplatte Complete - MGR 900

Montageplatte Complete Pos. No. Part No. Description Add. Info ... Read More

Stock: On Order
Brand: Ruhle
Type: 108289

Available Options

Montageplatte Complete MGR 900

Qty

Request Quote

From Same Category
Same Brand

Quickview

Kabel fur Grenztaster B1 Complete - MGR 900

View Details Request Quotes

Quickview

Kabel fur Grenztaster B2 Complete - MGR 900

View Details Request Quotes

Quickview

Kabel fur Not-Ausschalter Complete - MGR 900

View Details Request Quotes

Quickview

Schaltkasten Assembly - MGR 900

View Details Request Quotes

Description
Specifications

Montageplatte Complete

Pos. No.	Part No.	Description	Add. Info	Required
1	108171	Montageplatte	720 x 520 x 2	1
2	F27057	Phase sequence relay	IK 9179	1
3	106920	Sicherungsautomat	13A, 3-polig	3
4	106512	Motorschutzschalter 2,5 - 4A	GV2ME08	2
5	106513	Motorschutzschalter 1,6 - 2,5A	GV2ME07	1
6	106514	Motorschutzschalter 1 - 1,6A	GV2ME06	1
7	106924	Hilfsschalter	GVAN11	4
8	106923	Sicherungsautomat	13A, 1-polig	3
9	104292	Trenn-Grund-Sicherungsklemme	4mm²	2
10	104293	Sicherungstrennhebel	THSI 5x20 GL250	2
11	F252794	Sicherung 5,0 AT	5,0 x 20 mm	4
12	106533	I/O board	16DI/16DO/2AI/2AO/PT100 I	1
13	F27072	Zeitrelais	CT-ARE	1
14	106695	Not-Halt-Sicherheitsrelais	SCR 4-W22-3.5-D	1
15	F41540	Relay	1 We / 24 VDC / 10A	2
16	101590	Leistungsschütz 24VDC	LC1 D25 BD	1
17	F41539	Relay	1 We / 24 VDC / 10A	2
18	F20916	turn contactor	LP2-KO910 BD3	2
19	106925	Hilfsschalterblock	LA1 KN22	4
20	F27091	Power contactor 24VDC	LP1-K0910 BD3	2
21	F28410	Power supply 230VAC/24VDC	S-60-24 MW	1
22	109047	Klemmleiste	MGR 400 / 900 / 1500	1
23	108013	Netzfilter 36A	EPA NF-4-36-FTR	1
24	107770	Sammelschiene	PS3/9	1
25	107819	Sammelschiene	GV2G254	2
26	108267	grounding cable	I/O board	1
27	F27618	Circuit board holder	208000 032	1
28	104155	Sicherungsautomat	6A, 1-polig, +N	1
29	F28731	Kabelkanal	80 x 30 x 2000	2600
30	108706	Sicherungsautomat	6A, 1-polig, +N	1
