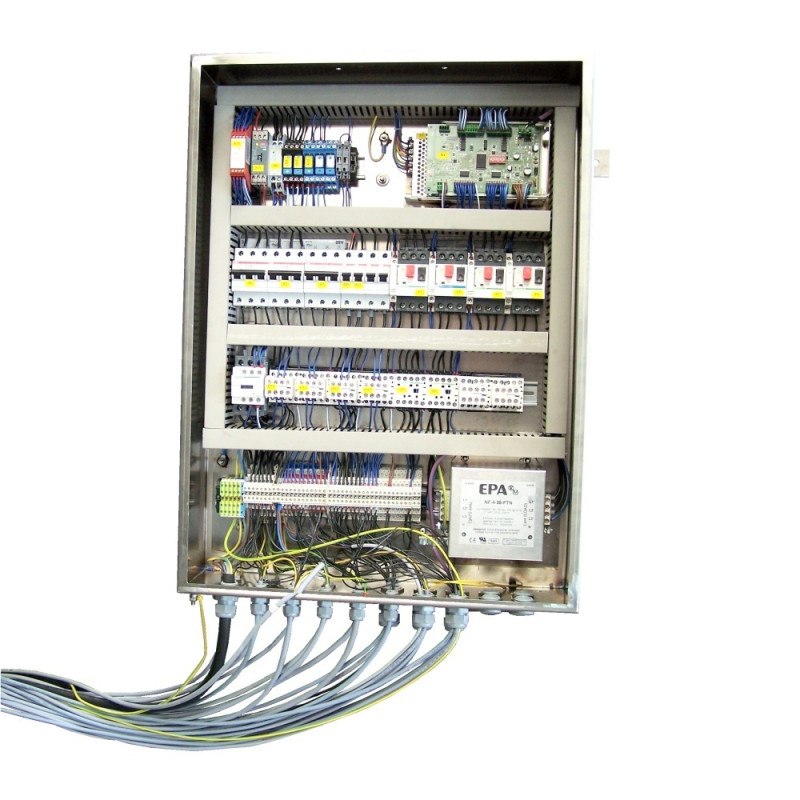

Schaltkasten Assembly

Pos. No.	Part No.	Description	Add. Info	Required
1	108172	Gehäuse	746 x 546 x 174 x 2	1
2	108289	Montageplatte	MGR 900	1
3	108173	Deckel	751 x 551 x 14 x 2	1
4	105860	Riegelverschluß	IR 56	4
5	F26336	lock washer	DIN6797-A Ø 5,3	1
6	F25910	Hexagonal bolt	DIN933 M 5 x 25	1
7	F21045	Washer	DIN125 A 5,3	3
8	F20260	Spring lock washer	DIN127 B 5	1
9	F21028	Hexagonal nut	DIN934 M 5	2
10	106969	Winkel	40 x 40 x 5	4
11	F20664	Seal	18 x 3	1,5
12	F20664	Seal	18 x 3	1,02
13	F10131	Sticker	flash	1
14	F148541	Sticker	BMK02	1
15	107800	Erdungskabel	Deckel - SK 1 MGR	1
16	F27630	Widerstandsthermometer 300/600	PT 100 K9 D=8	1
17	108271	Kabel für Mikroschalter	MGR 400/900	1
18	108272	Kabel für Mikroschalter	MGR 400/900	1
19	108268	Kabel für Grenztaster B1	MGR 400/900	1
20	108269	Kabel für Grenztaster B2	MGR 400/900	1
21	108284	Kabel für Not-Ausschalter	MGR 400/900	1
22	108285	Kabel für Hupe	MGR 400/900/1500	1
23	108095	Hupe	PSW.66024-107M.P	1
24	108292	Kabel für Hauptschalter	MGR 400/900	1
25	108295	Kabel für Bremsgleichrichter	MGR 400/900	1
26	108358	Kabel für Zuleitung PC	MGR 400/900	1
27	F27332	Litz 1.5mm²	H07V-K 1,5 mm² sw	0,14
