Mounting plate Exploded View 1 IR56 Injector No. 210 and Higher

Mounting plate Exploded View 1 IR56 Injector No. 210 and Higher Pos No. Par... Read More

Stock: On Order
Brand: Ruhle
Type: 102050

Available Options

Mounting plate Exploded View 1 IR 56 No. 210 and higher

Qty

Request Quote

From Same Category
Same Brand

Quickview

Mounting plate Exploded View IR56 Injector F456118

View Details Request Quotes

Quickview

Switch Box Assembly IR56 Injector No. 210 and Higher - 102128

View Details Request Quotes

Quickview

Switch box Complete IR56 Injector No. 210 and Higher

View Details Request Quotes

Description
Specifications

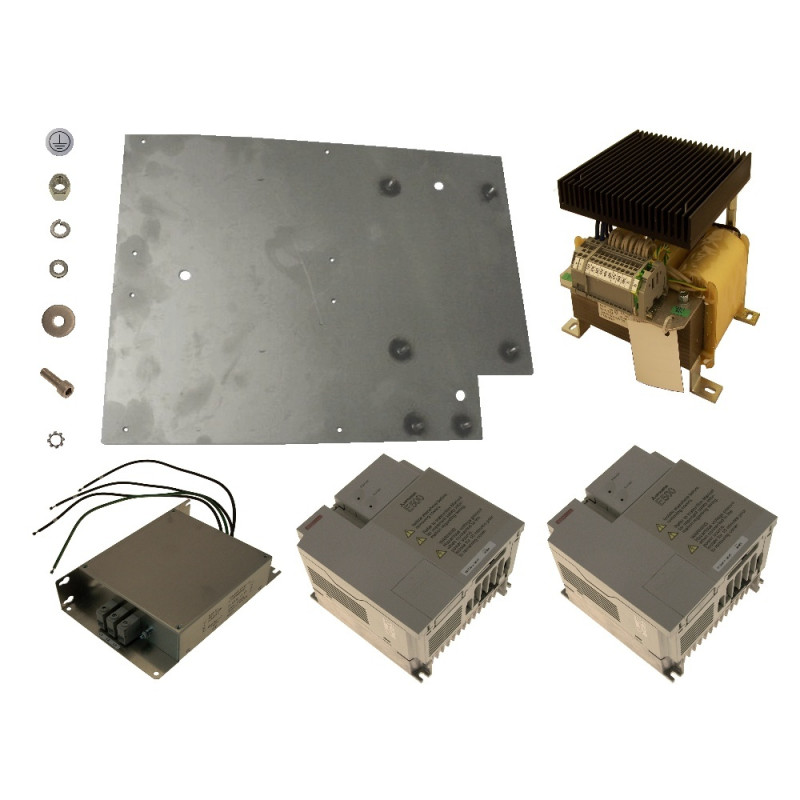

Mounting plate Exploded View 1 IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F445136	Mounting plate	IR 28/56	1
2	F26336	lock washer	DIN6797-A Ø 5,3	8
3	F22174	Cylinder head screw	DIN912 M 5 x 12	8
4	F21035	Disc	Ø 6,5 x Ø 20 x 2	4
5	F20258	Washer	DIN125 A 6,4	2
6	F24031	Spring lock washer	DIN127 B 6	6
7	F20203	Hexagonal nut	DIN934 M 6	6
8	F148541	Sticker	BMK02	1
9	F27068	Power supply 400VAC/24VDC	DNL 25	1
10	F28432	Line filter 3.7kW	FFR-E540 - 15A-SF1-LL	2
11	106083	Programmed FC	FR-E540 - 3.7K-EC	1
12	106707	Programmed FC	FR-E540 - 3.7K-EC	1
