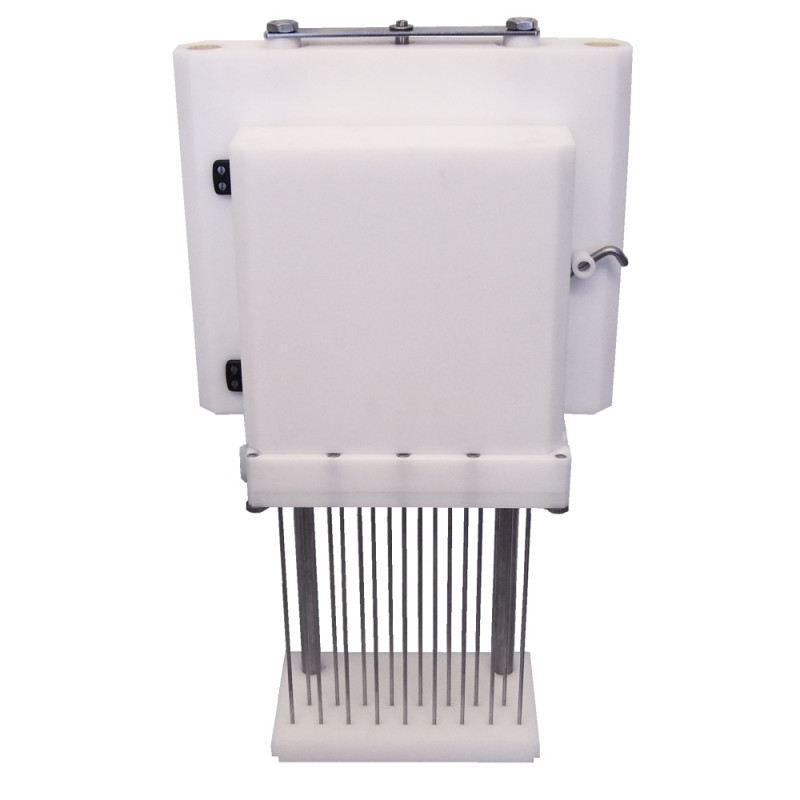

Nadelbalken Assembly IR17 Injector No. 235 and Higher
Type: 109128
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1346
*
Nadelbalken Assembly IR 17 no. 235 and higher:
--109083 Block
--109108 Blech
--F252764 Sechskantmutter
--108994 Platte
--F21490 Senkschraube
--109052 Pleuel
-- 109053 Scharnier
--109058 Senkschraube
--109379 Bolzen
--109381 Sicherungsscheibe
--109430 Verteileinrichtung
--112307 Hebel
--109444 Bolzen
--109440 Mutter
--109997 Hebel
--110297 Gleitlager
--F21035 Scheibe
--F21243 Zylinderschraube
-- 109435 Blech
-- 109437 Blech
--F29102 Gewindeeinsatz
--109447 Führungsbolzen
-- F23688 Senkschraube
--109441 Scheibe
--109084 Block
-- 109439 Bolzen
--F22888 U-Scheibe
--F20259 Sechskantmutter
--109343 Zugfeder
--109406 Winkel
--109119 Buchse
--110657 Pökelnadel
--F21028 Sechskantmutter
.
Nadelbalken Assembly IR17 Injector No. 235 and Higher
|
Pos No. |
Part No. |
Description |
Add Info |
Required |
 |
1 |
109083 |
Block |
IR 17 |
1 |
 |
2 |
109084 |
Block |
IR 17 |
1 |
 |
3 |
109108 |
Blech |
235 x 53 x 10,4 x 3 |
1 |
 |
4 |
F252764 |
Sechskantmutter |
DIN439 M 16 x 1,5 |
2 |
 |
5 |
108994 |
Platte |
260 x 152 x 25 |
1 |
 |
6 |
F21490 |
Senkschraube |
DIN963 M 8 x 20 |
2 |
 |
7 |
109052 |
Pleuel |
35 x 15 x 350 |
1 |
 |
8 |
109053 |
Scharnier |
100-3-1 |
2 |
 |
9 |
109058 |
Senkschraube |
DIN7972 3,9 x 16 |
8 |
 |
10 |
109379 |
Bolzen |
Ø 8 x 80,7 |
1 |
 |
11 |
109381 |
Sicherungsscheibe |
DIN6799 Ø 6 x 0,7 |
1 |
 |
12 |
109430 |
Verteileinrichtung |
IR 17 |
1 |
 |
13 |
112307 |
Hebel |
IR 17 |
1 |
 |
14 |
109444 |
Bolzen |
Ø 12 x 57,5 |
1 |
 |
15 |
109440 |
Mutter |
Ø 24,9 x M 8 x 5 |
1 |
 |
16 |
109997 |
Hebel |
IR 17 |
1 |
 |
17 |
110297 |
Gleitlager |
DIN1850 - J20 x 23 x 15 |
1 |
 |
18 |
F21035 |
Scheibe |
Ø 6,5 x Ø 20 x 2 |
1 |
 |
19 |
F21243 |
Zylinderschraube |
DIN84 M 6 x 12 |
2 |
 |
20 |
109435 |
Blech |
58 x 12 x 2,5 |
1 |
 |
21 |
109437 |
Blech |
58 x 12 x 2,5 |
1 |
 |
22 |
F29102 |
Gewindeeinsatz |
M 6 x M 10 x 1,5 x 14 |
2 |
 |
23 |
109447 |
Führungsbolzen |
Ø 20 x 10 |
2 |
 |
24 |
F23688 |
Senkschraube |
DIN963 M 6 x 20 |
2 |
 |
25 |
109441 |
Scheibe |
Ø 6,3 x Ø 15 x 2,7 |
1 |
 |
26 |
109439 |
Bolzen |
Ø 8 x 20,5 |
2 |
 |
27 |
F22888 |
U-Scheibe |
DIN125 A 8,4 |
1 |
 |
28 |
F20259 |
Sechskantmutter |
DIN934 M 8 |
1 |
 |
29 |
109343 |
Zugfeder |
Ø 1,1 x De12 x 44,3 |
1 |
 |
30 |
109406 |
Winkel |
283,5 x 138 x 111,4 x 5 |
1 |
 |
31 |
109119 |
Buchse |
Ø 20 x Ø 30 x 28 |
2 |
 |
32 |
110657 |
Pökelnadel |
Ø 4,0 x 331 |
17 |
 |
33 |
F21028 |
Sechskantmutter |
DIN934 M 5 |
2 |
.
