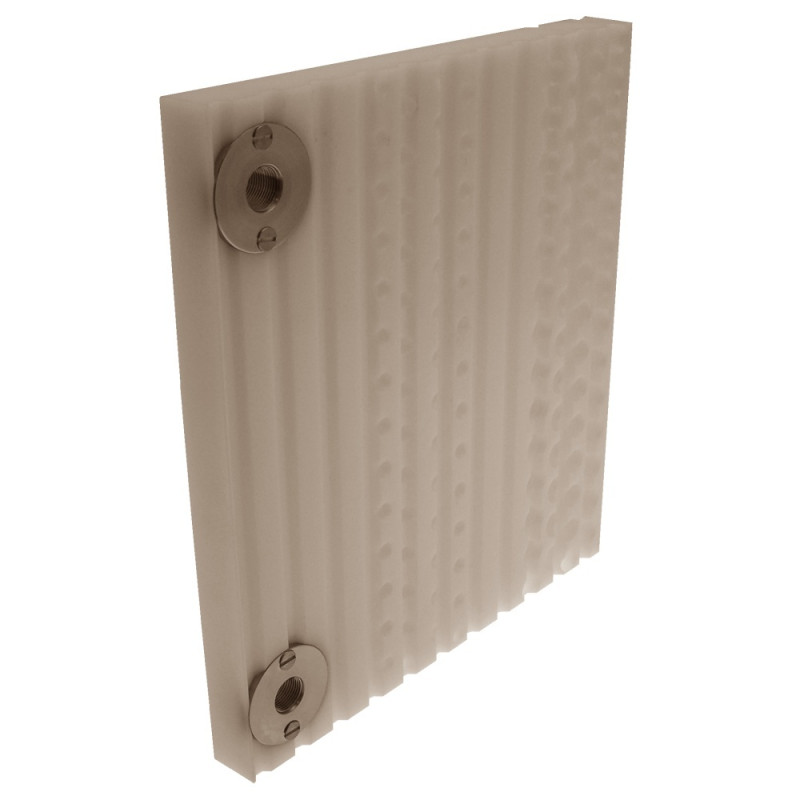

Plate Exploded View

Type: 101073
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2355
* Plate Exploded View 1 IR 56 No. 210 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F240188 Plate 340 x 305 x 30 1
2 F240180 Flange M 20 x 1,5 x Ø 55 x 23 2
3 F23688 Countersunk bolt DIN963 M 6 x 20 4
