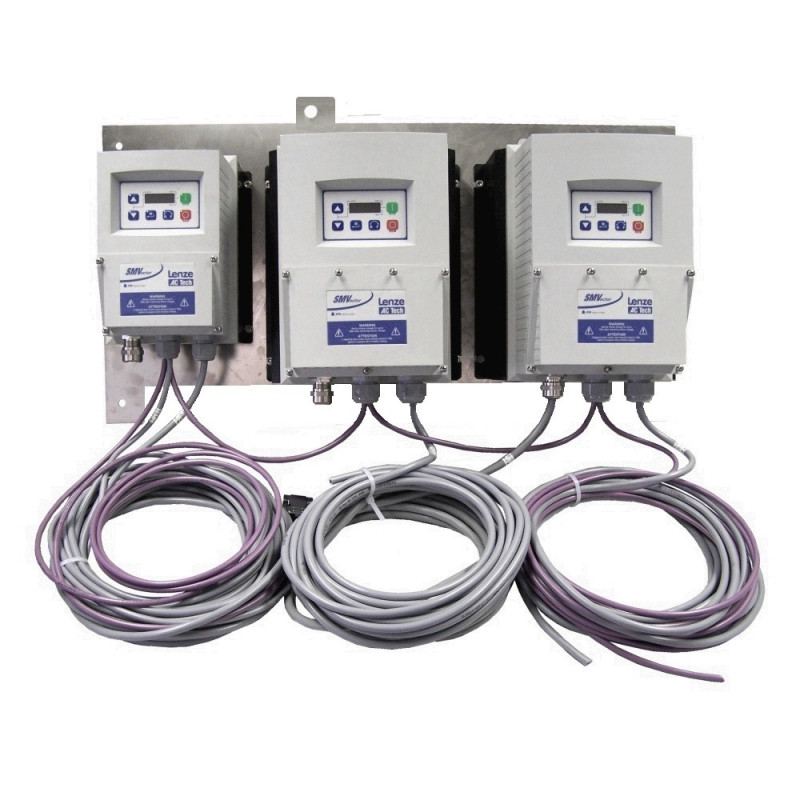

Platte Assembly

Type: 108249
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2637
* Platte Assembly MGR 900:

  Pos. No.  Part No.  Description  Add. Info  Required
  1 108177 Blech 750 x 300 x 3 1
  2 F248399 Sechskantschweißmutter DIN929 M 5 12
  3 F26699 Hubzündungsbolzen M 6 x 12 1
  4 F21045 Washer DIN125 A 5,3 12
  5 F20260 Spring lock washer DIN127 B 5 12
  6 F22174 Cylinder head screw DIN912 M 5 x 12 12
  7 F28732 lock washer DIN6797-A ø 6,4 1
  8 F20258 Washer DIN125 A 6,4 1
  9 F24031 Spring lock washer DIN127 B 6 1
  10 F20203 Hexagonal nut DIN934 M 6 1
Group 11 108256 Frequenzumrichter 5,5kW MGR 900 1
Group 12 108258 Frequenzumrichter 2,2kW MGR 900 1
Group 13 108259 Frequenzumrichter 4,0kW MGR 900 1
  14 F148541 Sticker BMK02 1
  15 F10131 Sticker flash 1
  16 108234 Erdungskabel MGR 400/900/1500 1
