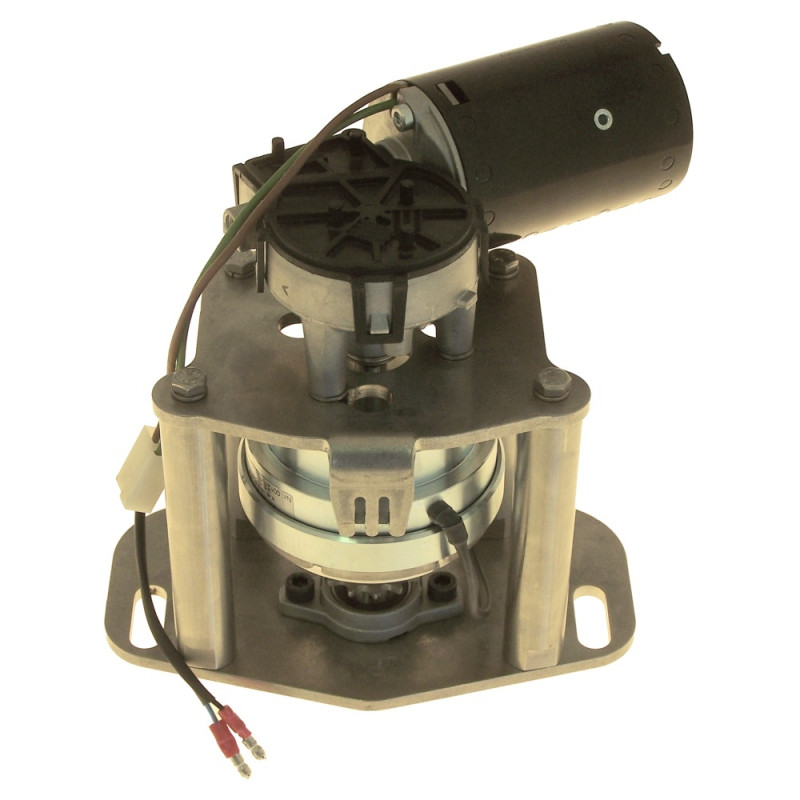

Pre-compacting system Complete Ruhle SR1 Dicer
Type: 104994
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1231
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1231
Note: Shipping to be Determined.
Pre-compacting system Complete for Ruhle SR1 T Meat Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
2 | F28331 | Bracket | 132 x 104,5 x 35 x 5 | 1 |
 |
3 | F28333 | plate / sheet | 180 x 100 x 5 | 1 |
 |
4 | F20624 | Flange bearing | UCFL 001 2-Loch | 1 |
 |
5 | F20560 | Cylinder head screw | DIN912 M 6 x 22 | 2 |
 |
6 | F26145 | Hexagonal nut | DIN934 M 6 | 2 |
 |
7 | F20258 | Washer | DIN125 A 6,4 | 6 |
 |
8 | F24031 | Spring lock washer | DIN127 B 6 | 6 |
 |
9 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 7 |
 |
10 | F20453 | Countersunk bolt | DIN7991 M 6 x 20 | 4 |
 |
11 | F26362 | Shaft | Ø 20 x 103 | 4 |
 |
12 | F20953 | Chain wheel shaft | Ø 37 x 75 | 1 |
 |
14 | 102537 | Ring | Ø 12,2 x Ø 30 x 4,5 | 1 |
 |
15 | F20832 | Slide bearing | DIN1850 - J12 x 14 x 10 | 2 |
 |
16 | F26363 | Spring key | A 6 x 6 x 18 | 1 |
 |
17 | F26360 | Woodruff key | 3 x 3,7 | 1 |
 |
18 | F26358 | Locking ring | DIN471 Ø 10 x 1 | 1 |
 |
19 | F22974 | Threaded pin | DIN916 M 5 x 5 | 1 |
 |
20 | F28109 | Compensating disc | Ø 12 x Ø 18 x 0,1 | 1 |
|
21 | F28109b | Compensating disc | Ø 12 x Ø 18 x 0,5 | 1 |
|
22 | F28109a | Compensating disc | Ø 12 x Ø 18 x 0,25 | 1 |
 |
23 | F258459 | Disc | Ø 10,5 x Ø 14 x 0,65 | 1 |
 |
24 | F26952 | Gear motor | CHP 24V 43W | 1 |
 |
25 | 102709 | Solenoid coupling | 14.105.08.31 | 1 |
