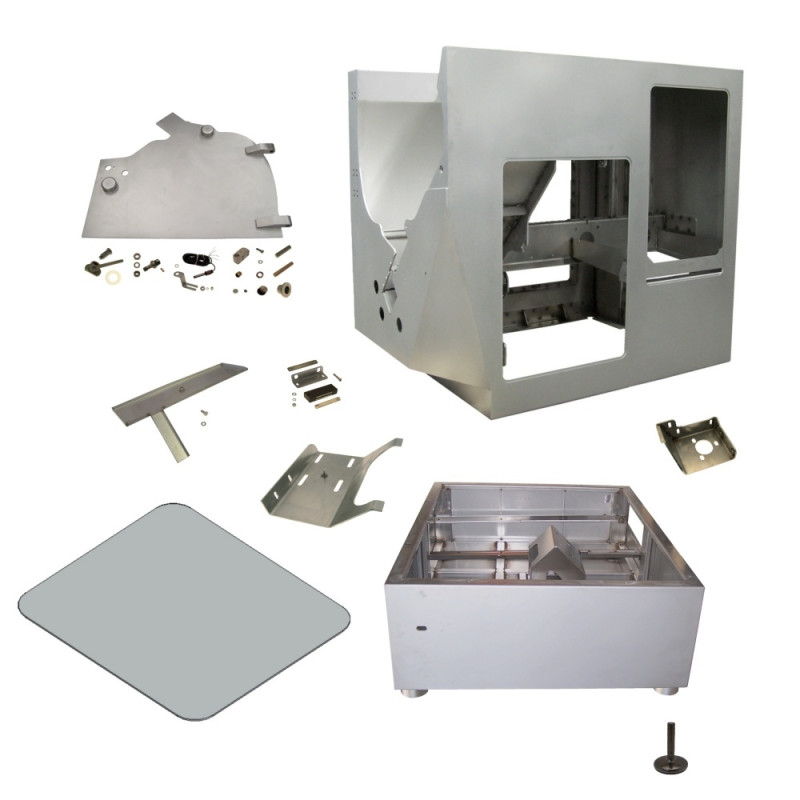

Rack Assembly Ruhle SR3 Dicer No. 70 and Higher

Type: 104693
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 957

Note: Shipping to be Determined.

* Rack SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rack Assembly Ruhle SR3 Dicer No. 70 and Higher

Type: 104693
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 957

Note: Shipping to be Determined.

* Rack SR3 Lifting unit for No. 70 and higher:
--F441238 rack
--F447748 rack
--F24901 Washer
--F20323 Hexagonal bolt
--F42289 door
--F42354 Bracket
--103588 Cable duct
--F28731 Cable duct
--F27701 Cable duct
--F244731 Cable duct
-- 104665 Pan
--F443392 Segment
--F22907 Disc
--F22907 Disc
--F26379 Spring lock washer
--F26379 Spring lock washer
--F20402 Hexagonal bolt
--F22172 Cloth
--F24522 Hexagonal bolt
--F28732 lock washer
--F20258 Washer
--F20258 Washer
--F20203 Hexagonal nut
--F20959 Plug
--F21825 Holding clamp
--F24031 Spring lock washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F27518 Hexagonal nut
--F240860 Machine base
--F240830 Bracket
--F20210 Spring lock washer
--F21042 Hexagonal bolt
--104694 Bracket
--F26600 Disc
--F21260 Spring lock washer
--F20259 Hexagonal nut
--F28728 Grooved ball bearing
--107360 Boden
--F41786 Console
--F22138 Hexagonal bolt
--F20402 Hexagonal bolt
--F445214 Housing

Rack Assembly Ruhle Meat Dicer SR3 No. 70 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F441238	rack	SR 3	1
2	F447748	rack	SR 3	1
3	F24901	Washer	Ø 12,5 x Ø 35 x 3	12
4	F20323	Hexagonal bolt	DIN933 M12 x 25	4
5	F42289	door	SR 3	1
6	F42354	Bracket	SR 3	13
7	103588	Cable duct	80 x 45 x 2000	600 mm
8	F28731	Cable duct	80 x 30 x 2000	2200 mm
9	F27701	Cable duct	32 x 18 x 2000	2380 mm
10	F244731	Cable duct	19 x 19 x 2000	1850 mm
11	104665	Pan	SR 3	1
12	F443392	Segment	SR 3	1
13	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
14	F26379	Spring lock washer	DIN127 B 10	4
15	F20402	Hexagonal bolt	DIN933 M10 x 30	4
16	F22172	Cloth	80 x 20 x 4	1
17	F24522	Hexagonal bolt	DIN933 M 6 x 25	1
18	F28732	lock washer	DIN6797-A ø 6,4	7
19	F20258	Washer	DIN125 A 6,4	8
20	F24031	Spring lock washer	DIN127 B 6	7
21	F20203	Hexagonal nut	DIN934 M 6	8
22	F20959	Plug	Ø 30 x 20	1
23	F21825	Holding clamp	A 100	1
24	F20258	Washer	DIN125 A 6,4	2
25	F24031	Spring lock washer	DIN127 B 6	2
26	F20203	Hexagonal nut	DIN934 M 6	2
27	F27518	Hexagonal nut	DIN934 M 24	4
28	F240860	Machine base	Ø 120 x 150 x M 24	4
29	F240830	Bracket	416 x 88 x 60 x 8	2
30	F20210	Spring lock washer	DIN127 B 12	8
31	F21042	Hexagonal bolt	DIN933 M12 x 30	8
32	104694	Bracket	SR 3	2
33	F26600	Disc	Ø 8,5 x Ø 20 x 2	1
34	F21260	Spring lock washer	DIN127 B 8	1
35	F20259	Hexagonal nut	DIN934 M 8	1
36	F28728	Grooved ball bearing	DIN625 - 6300 2RS	2
37	107360	Boden	519,5 x 459,5 x 3	1
38	F41786	Console	SR 3	1
39	F22907	Disc	Ø 10,5 x Ø 35 x 3	6
40	F26379	Spring lock washer	DIN127 B 10	6
41	F22138	Hexagonal bolt	DIN933 M10 x 25	4
42	F20402	Hexagonal bolt	DIN933 M10 x 30	2
43	F445214	Housing	SR 3	1
