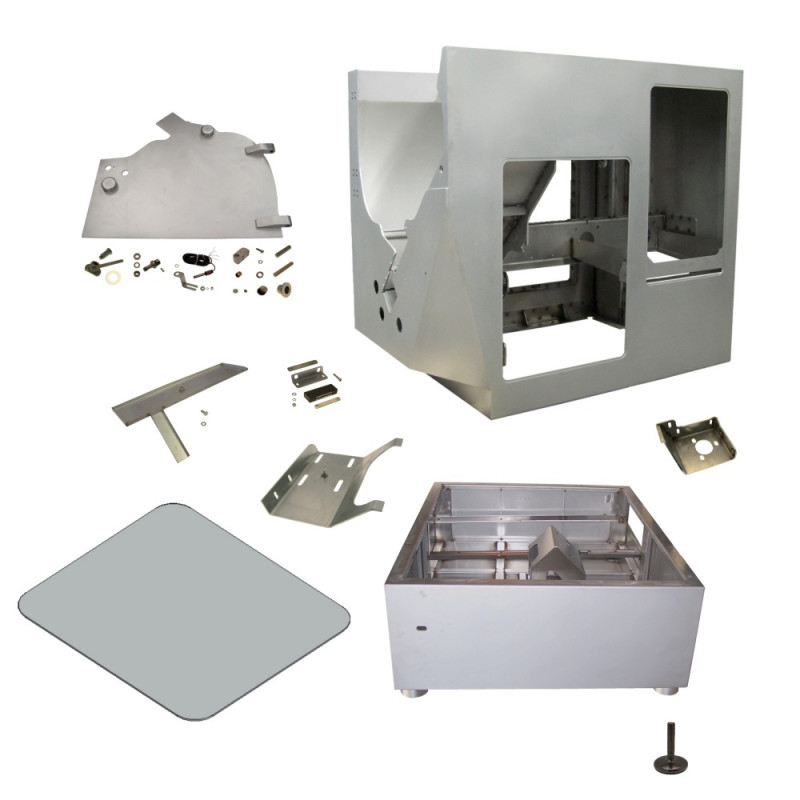

Rack Assembly Ruhle Meat Dicer SR3 No. 35 and Higher

Type: 104693_1
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1072
* Rack SR3 Lifting unit No. 35 and higher:

Rack Assembly Ruhle Meat Dicer SR3 No. 35 and Higher

  Pos No. Part No. Description Add Info Required
F441238 1 F441238 rack SR 3 1
F447748 2 F447748 rack SR 3 1
F24901 3 F24901 Washer Ø 12,5 x Ø 35 x 3 12
F20323 4 F20323 Hexagonal bolt DIN933 M12 x 25 4
F42289 5 F42289 door SR 3 1
F42354 6 F42354 Bracket SR 3 13
103588 7 103588 Cable duct 80 x 45 x 2000 600 mm
103588 8 F28731 Cable duct 80 x 30 x 2000 2200 mm
F27701 9 F27701 Cable duct 32 x 18 x 2000 2380 mm
F244731 10 F244731 Cable duct 19 x 19 x 2000 1850 mm
104665 11 104665 Pan SR 3 1
F443392 12 F443392 Segment SR 3 1
F22907 13 F22907 Disc Ø 10,5 x Ø 35 x 3 4
F26379 14 F26379 Spring lock washer DIN127 B 10 4
F20402 15 F20402 Hexagonal bolt DIN933 M10 x 30 4
F22172 16 F22172 Cloth 80 x 20 x 4 1
F24522 17 F24522 Hexagonal bolt DIN933 M 6 x 25 1
F28732 18 F28732 lock washer DIN6797-A ø 6,4 7
F20258 19 F20258 Washer DIN125 A 6,4 8
F24031 20 F24031 Spring lock washer DIN127 B 6 7
F20203 21 F20203 Hexagonal nut DIN934 M 6 8
F20959 22 F20959 Plug Ø 30 x 20 1
F21825 23 F21825 Holding clamp A 100 1
F20258 24 F20258 Washer DIN125 A 6,4 2
F24031 25 F24031 Spring lock washer DIN127 B 6 2
F20203 26 F20203 Hexagonal nut DIN934 M 6 2
F27518 27 F27518 Hexagonal nut DIN934 M 24 4
F240860 28 F240860 Machine base Ø 120 x 150 x M 24 4
F240830 29 F240830 Bracket 416 x 88 x 60 x 8 2
F20210 30 F20210 Spring lock washer DIN127 B 12 8
F21042 31 F21042 Hexagonal bolt DIN933 M12 x 30 8
104694 32 104694 Bracket SR 3 2
F26600 33 F26600 Disc Ø 8,5 x Ø 20 x 2 1
F21260 34 F21260 Spring lock washer DIN127 B 8 1
F20259 35 F20259 Hexagonal nut DIN934 M 8 1
F28728 36 F28728 Grooved ball bearing DIN625 - 6300 2RS 2
107360 37 107360 Boden 519,5 x 459,5 x 3 1
F41786 38 F41786 Console SR 3 1
F22907 39 F22907 Disc Ø 10,5 x Ø 35 x 3 6
F26379 40 F26379 Spring lock washer DIN127 B 10 6
F21042 41 F22138 Hexagonal bolt DIN933 M10 x 25 4
F21042 42 F20402 Hexagonal bolt DIN933 M10 x 30 2
F445214 43 F445214 Housing SR 3 1
