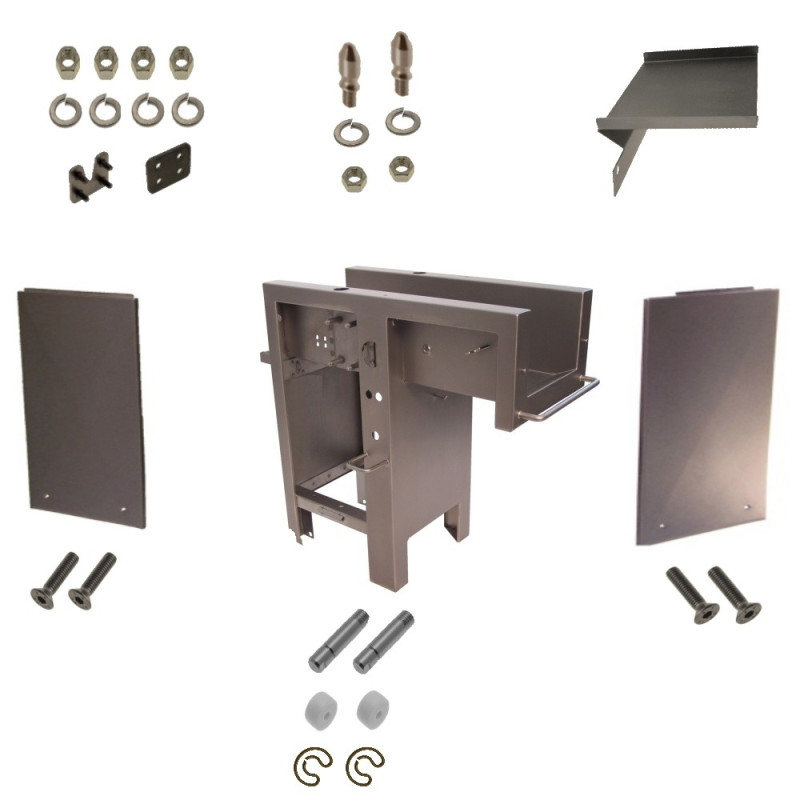

Rack Assembly

Brand: Ruhle
Type: 107004
Location: FOB Brampton Canada
U/M: Each

Available Options


* Rack Assembly PR 8:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F40003 rack PR 8 - 15 1
2 F41802 Bracket PR 8 - 20 2
3 F24031 Spring lock washer DIN127 B 6 8
4 F20203 Hexagonal nut DIN934 M 6 8
5 F21853 plate / sheet 62 x 47 x 4 2
6 F21869 bolt Ø 12 x 33 2
7 F20259 Hexagonal nut DIN934 M 8 2
8 F21260 Spring lock washer DIN127 B 8 2
9 F21262 Annular spring Ø 12 x Ø 30 x 2,2 2
10 F21259 Rolle Ø 16,5 x Ø 65 x 35 2
11 F22869 bolt Ø 16 x 70 2
12 F21841 Profile 380 x 310,6 x 208,5 x 2,5 1
13 F20040 Lid 684 x 300 x 23 x 1,5 1
14 F244964 Lid 684 x 300 x 23 x 1,5 1
15 F28582 Countersunk bolt DIN7991 M 6 x 25 4
