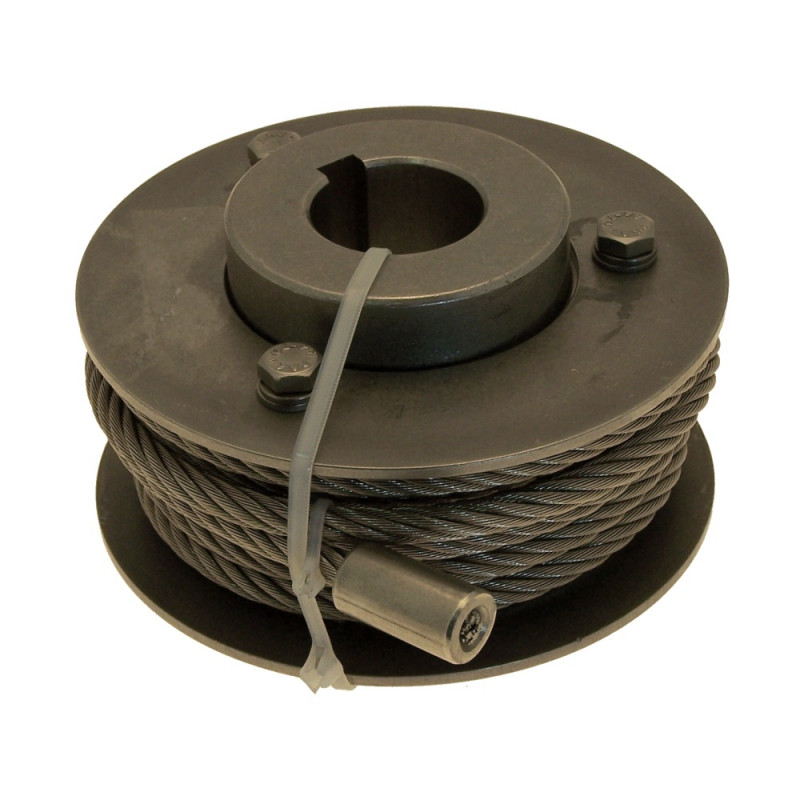

Rolle Exploded View

Type: F440963
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2338
* Rolle Exploded View 2 IR 56 Facelift No 612 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F29344 Rolle Ø 30 x Ø 93 x 58 1
2 F29345 Drahtseil Ø 6 x Ø 19 x 2500 1
3 F241278 Scheibe Ø 47 x Ø 115 x 2,5 1
4 F241279 Scheibe Ø 62 x Ø 115 x 2,5 1
5 F20258 U-Scheibe DIN125 A 6,4 8
6 F24031 Federring DIN127 B 6 8
7 F21047 Sechskantschraube DIN933 M 6 x 12 8
