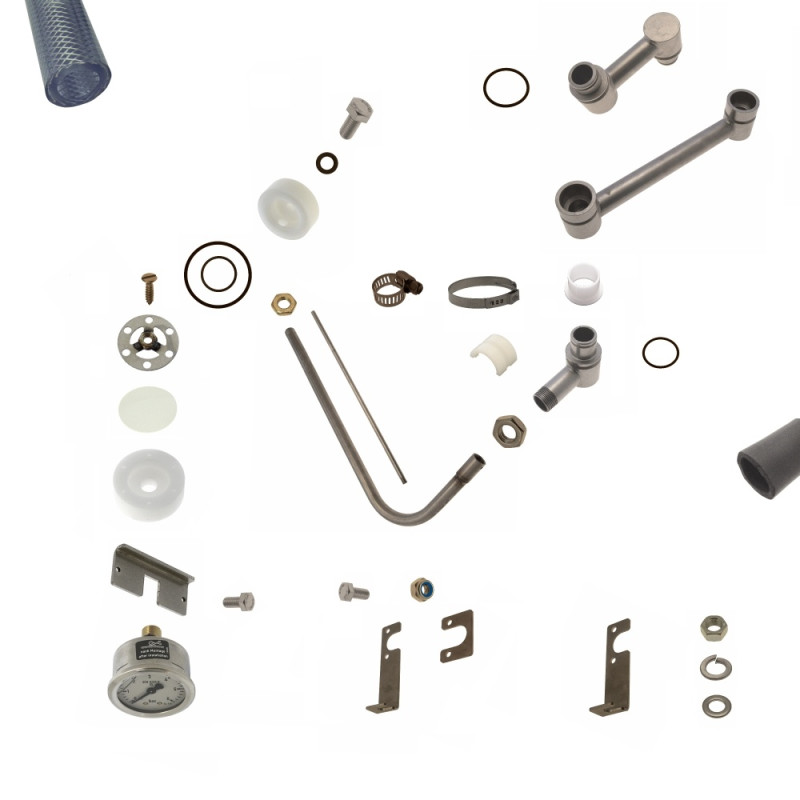

Schlauchverlegung Assembly IR17 Injector No. 235 and Higher
- Stock: On Order
- Brand: Ruhle
- Type: 109468
Schlauchverlegung Assembly IR17 Injector No. 235 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 109548 | Rohr | IR 17 | 1 |
 |
2 | F27648 | Schlauch | Ø 19 x 5 | 1070 mm |
 |
3 | F20165 | Schlauchschelle | HAS 16 Ø 17-38 | 2 |
 |
4 | 110371 | Gehäuse | Ø 52,5 x 22 | 1 |
 |
5 | F21508 | Sechskantmutter | DIN439 M 10 x 1 | 1 |
 |
6 | 109545 | Drehgelenk | IR 17 | 1 |
 |
7 | 109046 | O-Ring | Ø 21,95 x 1,78 | 2 |
 |
8 | 109538 | Gleitlager | iglidur A180 | 2 |
 |
9 | 109546 | Drehgelenk | IR 17 | 1 |
 |
10 | 109547 | Drehgelenk | IR 17 | 1 |
 |
11 | 109045 | O-Ring | Ø 23,52 x 1,78 | 1 |
 |
12 | 109474 | Halter | 112 x 28 x 25 x 2,5 | 1 |
|
13 | 109476 | Halter | 97 x 28 x 25 x 2,5 | 1 |
 |
14 | 109478 | Blech | 48 x 35 x 2,5 | 2 |
 |
15 | F22888 | U-Scheibe | DIN125 A 8,4 | 2 |
 |
16 | F21260 | Federring | DIN128 A 8 | 2 |
 |
17 | F20259 | Sechskantmutter | DIN934 M 8 | 2 |
 |
18 | F21047 | Sechskantschraube | DIN933 M 6 x 12 | 4 |
 |
19 | F250798 | Sechskantmutter | DIN985 M 6 | 4 |
 |
20 | 109386 | Führung | Ø 45 x 33 | 4 |
 |
21 | 110393 | Druckmanometer | N7217,50,UB,1/4"BSP-M3,6bar | 1 |
 |
22 | 109624 | Armaflex Schlauch | HT/B2-10x054 | 100 mm |
 |
23 | F240479 | Sechskantmutter | DIN439 M 22 x 1,5 | 1 |
 |
24 | 110392 | Blech | 68 x 27 x 10 x 2 | 1 |
|
25 | 103733 | Sechskantschraube | DIN933 M 4 x 50 | 2 |
 |
