Schutte Exploded View - MGR 900 no. 131 and higher

Schutte Exploded View - MGR 900 no. 131 and higher
Schutte Exploded View - MGR 900 no. 131 and higher
Schutte Exploded View   Pos. No.  Part No.  Description  Add. Info  ... Read More
  • Stock: On Order
  • Brand: Ruhle
  • Type: 110674

Available Options

Request Quote
Antrieb Complete No. 131 and Higher
Quickview
Antrieb Complete No. 131 and Higher
View Details Request Quotes
Aufnahme Complete No.131 and Higher
Quickview
Aufnahme Complete No.131 and Higher
View Details Request Quotes
Getriebemotor + Bremse Exploded View - MGR 900 no. 131 and higher
Quickview
Getriebemotor + Bremse Exploded View - MGR 900 no. 131 and higher
View Details Request Quotes
Hebesystem Assembly Ruhle MGR900 No. 131 and Higher
Quickview
Hebesystem Assembly Ruhle MGR900 No. 131 and Higher
View Details Request Quotes
Rolle Exploded View - MGR 900 no. 131 and higher
Quickview
Rolle Exploded View - MGR 900 no. 131 and higher
View Details Request Quotes
Schütte Complete Ruhle MGR900 No. 131 and Higher
Quickview
Schütte Complete Ruhle MGR900 No. 131 and Higher
View Details Request Quotes
Umlenkung Complete Ruhle MGR900 No. 131 and Higher
Quickview
Umlenkung Complete Ruhle MGR900 No. 131 and Higher
View Details Request Quotes
Wagen Complete Ruhle MGR900 No. 131 and Higher
Quickview
Wagen Complete Ruhle MGR900 No. 131 and Higher
View Details Request Quotes

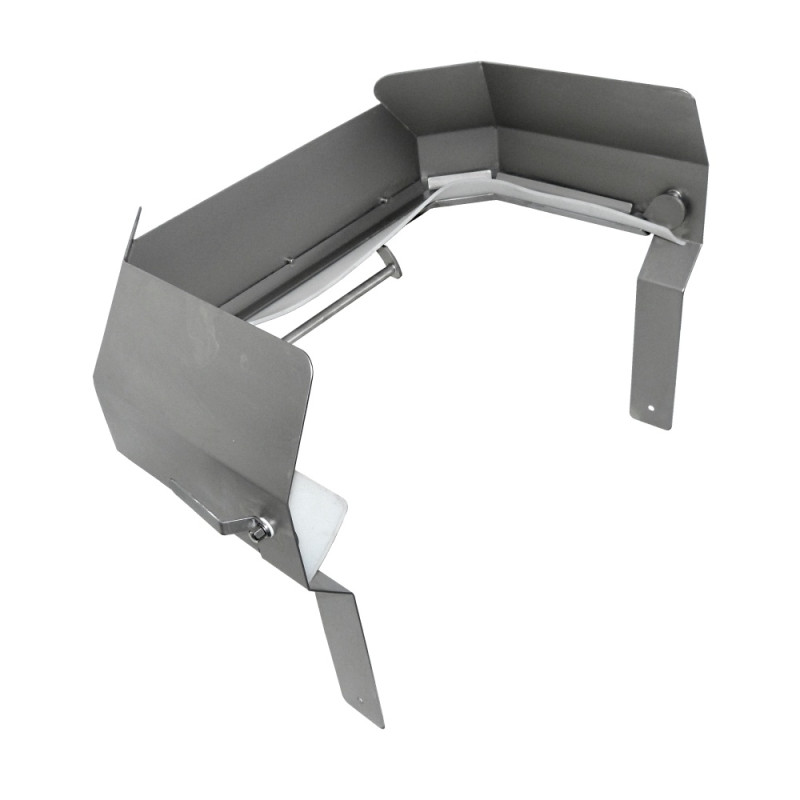

Schutte Exploded View

  Pos. No.  Part No.  Description  Add. Info  Required
110672 1 110672 Schütte MGR 500/900/1500 1
110642 2 110642 Gummi 1024 x 320 x 5 1
110664 3 110664 Rahmen 783 x 359,5 x 26,5 x 4 1
F248868 4 F248868 Gleitlager DIN1850 - J10 x 12 x 10 2
F21057 5 F21057 Ring Ø 10 x Ø 22 x 2,5 2
110668 6 110668 Umlenkblech MGR 400/900/1500 1
110663 7 110663 Hebel 124 x 30 x 20 x 4 2
110667 8 110667 Umlenkblech MGR 400/900/1500 1
F20134 9 F20134 Hutmutter DIN917 M 8 2
F27693 10 F27693 U-Scheibe DIN125 A 10,5 2
