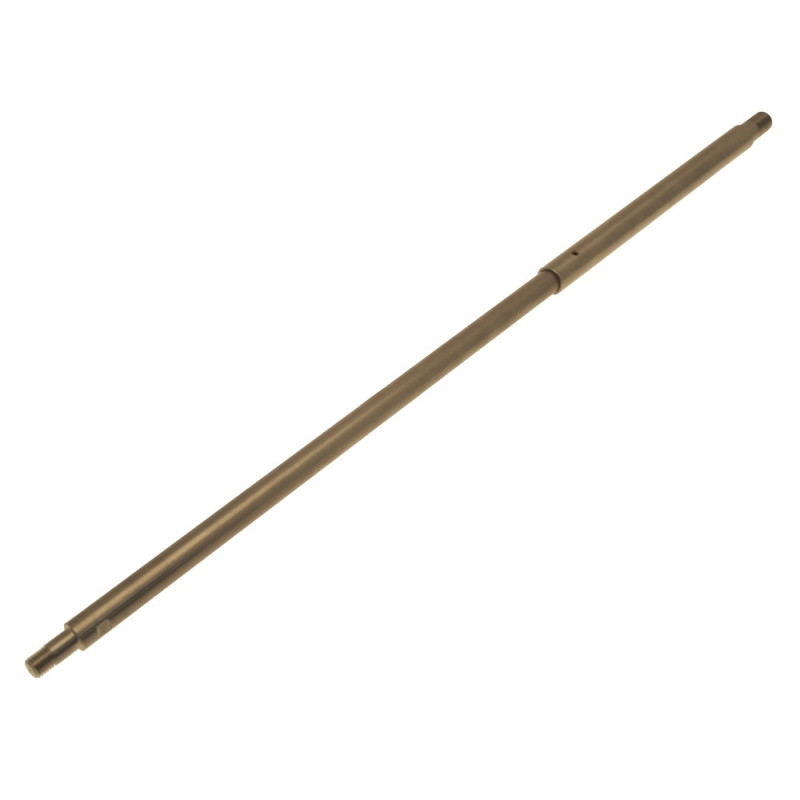

Shaft Exploded View
Type: F444371
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2357
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2357
-300x300.jpg "Shaft Exploded View")
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F240189 | Shaft | Ø 25 x 339 | 1 |
 |
2 | F240190 | Shaft | Ø 20 x 563 | 1 |
 |
3 | F20690 | Tensioning pin | DIN1481 Ø 5 x 10 | 1 |
