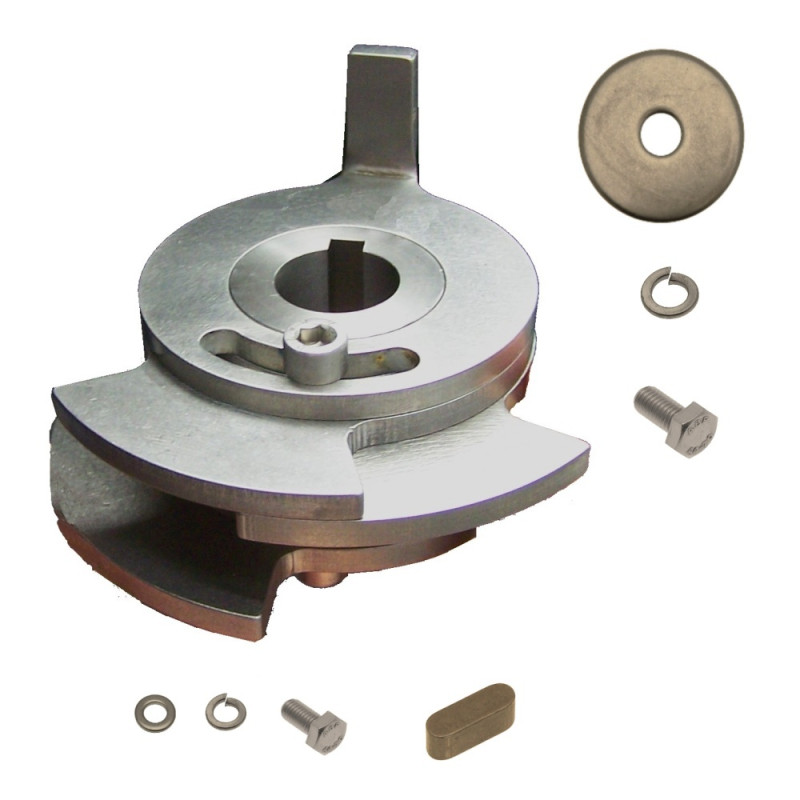

Signal Plate Exploded View SR3 Meat Dicer
Type: 102797
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1035
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1035
Note: Shipping to be Determined.
Signal Plate Exploded View for SR3 Meat Dicer No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F28472 | Hub | Ø 20.2 x Ø 60 x 35 | 1 |
 |
2 | F28475 | Signal plate | Ø 35,3 x 82,5 x 5 | 1 |
 |
3 | F20258 | Washer | DIN125 A 6,4 | 2 |
 |
4 | F22068 | Cylinder head screw | DIN912 M 6 x 12 | 1 |
 |
5 | F28474 | Signal plate | Ø 35,3 x 82,5 x 5 | 2 |
 |
6 | F28473 | Signal plate | Ø 35,3 x 76 x 28 x 5 | 1 |
 |
7 | F24031 | Spring lock washer | DIN127 B 6 | 1 |
 |
8 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 1 |
 |
9 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 1 |
|
10 | F21260 | Spring lock washer | DIN127 B 8 | 1 |
|
11 | F22449 | Hexagonal bolt | DIN933 M 8 x 20 | 1 |
