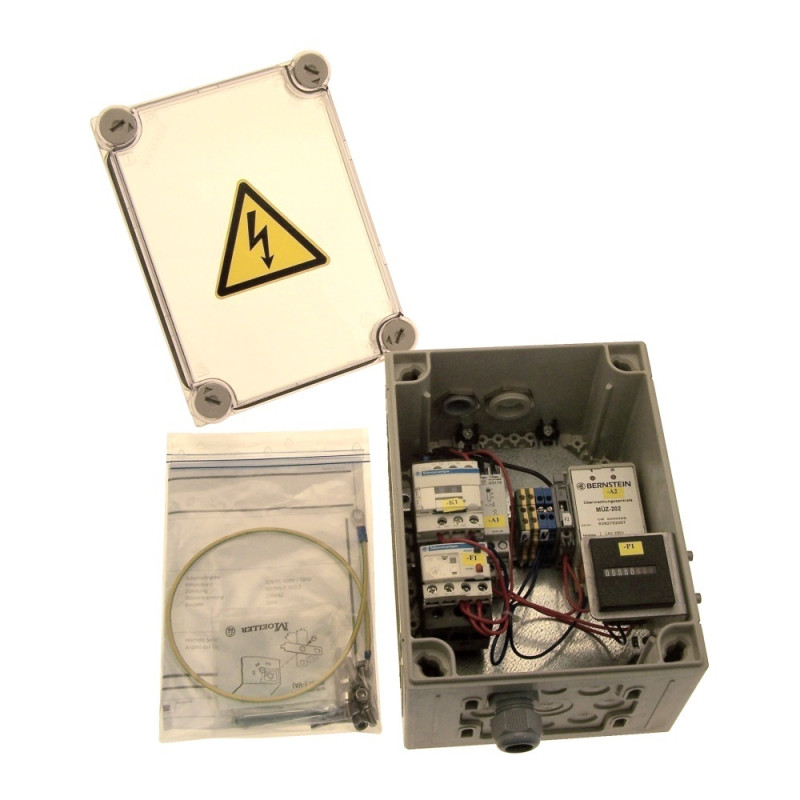

Switch Box Assembly for GFR450 Frozen Block Cutter

Pos No.	Part No.	Description	Add Info	Required
1	F24522	Hexagonal bolt	DIN933 M 6 x 25	4
2	F22068	Zylinderschraube	DIN912 M 6 x 12	4
3	F20146	Top-hat rail	35 x 7.5 x 2000	0.16
4	F27717	Bracket	67,5 x 57,5 x 15 x 2	1
5	F20570	U-Scheibe	DIN125 A 4,3	2
6	F20600	Cylinder head screw	DIN912 M 4 x 12	2
7	F28732	lock washer	DIN6797-A ø 6,4	1
8	F20258	Washer	DIN125 A 6,4	1
9	F24031	Spring lock washer	DIN127 B 6	1
10	F20203	Hexagonal nut	DIN934 M 6	1
11	F27057	Phase sequence relay	IK 9179	1
12	F20286	Monitoring unit	MÜZ 202	1
13	F27079	Motor protection relay 9.0-13A	LRD	1
14	F20723	Fuse terminal grey	5.0 x 20mm	1
15	F27065	Side Plate Grey	FEM 8S	1
16	F26053	Fuse 2.0 AT	5,0 x 20 mm	2
17	F27094	Power contactor 230VAC	LC1D12P7	1
18	F26382	Counter - Operating Hours 230V	BW 40	1
19	F21960	Terminal - 1x, blue	4mm²	2
20	F20903	Protective conductor terminal	2x 4mm²	2
21	F22658	Switch box	CI 23 E 125	1
22	F246138	Mounting plate	M3 CI 23	1
23	F20287	squash connector	BJM 6	2
24	F29057	Cable gland	M 25 x 1.5	2
25	F29060	Hexagonal nut	M 25 x 1.5	2
26	F246493	Cable gland	M 32 x 1.5 4 x 6	1
27	F24720	Sechskantmutter	M 32 x 1,5	1
28	F27727	Side Plate Grey	FEM 6	1
29	F20741	Solenoid switch	MAK 2626-2	2
30	F20300	Hexagonal nut	PG 9	2
31	101271	Circuit diagram	GFR 450	1
32	F10131	Sticker	flash	1
33	100164	Cable main drive cpl.	GFR 450	1
