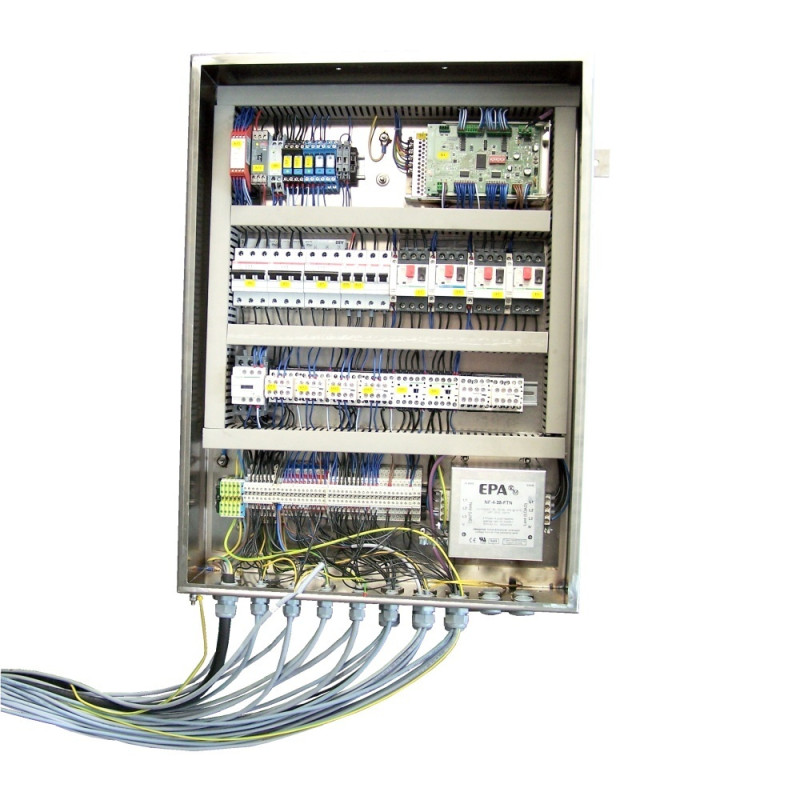

Switch Box Assembly MGR 400
Switch Box Assembly MGR 400 No. 1 and higher
Type: 108239
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1459
*
Switch Box Assembly MGR 400 No. 1 and higher:
CM Machine Services Ltd. Product Information
To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.
Switch Box Assembly MGR 400 No. 1 and higher
Type: 108239
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1459
*
Switch Box Assembly MGR 400 No. 1 and higher:
--108172 Gehäuse
--108240 Mounting plate
--108173 Deckel
--105860 Riegelverschluß
--F26336 lock washer
-- F25910 Hexagonal bolt
--F21045 Washer
--F20260 Spring lock washer
--F21028 Hexagonal nut
--106969 Winkel
--F20664 Seal
-- F20664 Seal
--F10131 Sticker
--F148541 Sticker
-- 107800 Erdungskabel
-- F27630 Widerstandsthermometer 300/600
-- 108271 Kabel für Mikroschalter
-- 108272 Kabel für Mikroschalter
-- 108268 Kabel für Grenztaster B1
--108269 Kabel für Grenztaster B2
--108284 Kabel für Not-Ausschalter
--108285 Kabel für Hupe
--108095 Hupe
--108287 Cable for main switch
--108295 Kabel für Bremsgleichrichter
--108358 Kabel für Zuleitung PC
--F27332 Litz 1.5mm²
--104173 Cable
--F23309 Socket
--F29057 Cable gland
-- F29060 Hexagonal nut
-- F20948 Cable gland
--F246330 Hexagonal nut
--F27625 blank plug
.
Switch Box Assembly MGR 400
| |
|
Pos. No. |
Part No. |
Description |
Add. Info |
Required |
| |
 |
1 |
108172 |
Gehäuse |
746 x 546 x 174 x 2 |
1 |
| |
 |
2 |
108240 |
Mounting plate |
MGR 400/900 |
1 |
| |
 |
3 |
108173 |
Deckel |
751 x 551 x 14 x 2 |
1 |
| |
 |
4 |
105860 |
Riegelverschluß |
IR 56 |
4 |
| |
 |
5 |
F26336 |
lock washer |
DIN6797-A Ø 5,3 |
1 |
| |
 |
6 |
F25910 |
Hexagonal bolt |
DIN933 M 5 x 25 |
1 |
| |
 |
7 |
F21045 |
Washer |
DIN125 A 5,3 |
3 |
| |
 |
8 |
F20260 |
Spring lock washer |
DIN127 B 5 |
1 |
| |
 |
9 |
F21028 |
Hexagonal nut |
DIN934 M 5 |
2 |
| |
 |
10 |
106969 |
Winkel |
40 x 40 x 5 |
4 |
| |
 |
11 |
F20664 |
Seal |
18 x 3 |
0,75 |
| |
|
12 |
F20664 |
Seal |
18 x 3 |
0,51 |
| |
 |
13 |
F10131 |
Sticker |
flash |
1 |
| |
 |
14 |
F148541 |
Sticker |
BMK02 |
1 |
| |
 |
15 |
107800 |
Erdungskabel |
Deckel - SK 1 MGR |
1 |
| |
 |
16 |
F27630 |
Widerstandsthermometer 300/600 |
PT 100 K9 D=8 |
1 |
| |
 |
17 |
108271 |
Kabel für Mikroschalter |
MGR 400/900 |
1 |
| |
 |
18 |
108272 |
Kabel für Mikroschalter |
MGR 400/900 |
1 |
| |
 |
19 |
108268 |
Kabel für Grenztaster B1 |
MGR 400/900 |
1 |
| |
 |
20 |
108269 |
Kabel für Grenztaster B2 |
MGR 400/900 |
1 |
| |
 |
21 |
108284 |
Kabel für Not-Ausschalter |
MGR 400/900 |
1 |
| |
 |
22 |
108285 |
Kabel für Hupe |
MGR 400/900/1500 |
1 |
| |
 |
23 |
108095 |
Hupe |
PSW.66024-107M.P |
1 |
| |
 |
24 |
108287 |
Cable for main switch |
MGR 400 |
1 |
| |
 |
26 |
108295 |
Kabel für Bremsgleichrichter |
MGR 400/900 |
1 |
| |
 |
27 |
108358 |
Kabel für Zuleitung PC |
MGR 400/900 |
1 |
| |
 |
28 |
F27332 |
Litz 1.5mm² |
H07V-K 1,5 mm² sw |
0,14 |
| |
 |
29 |
104173 |
Cable |
ÖLFLEX Classic-115CY 3G0.5mm² |
3 |
| |
 |
30 |
F23309 |
Socket |
GDM 3011 |
1 |
| |
 |
31 |
F29057 |
Cable gland |
M 25 x 1.5 |
6 |
| |
 |
32 |
F29060 |
Hexagonal nut |
M 25 x 1,5 |
10 |
| |
 |
33 |
F20948 |
Cable gland |
M 16 x 1.5 |
10 |
| |
 |
34 |
F246330 |
Hexagonal nut |
M 16 x 1,5 |
10 |
| |
 |
35 |
F27625 |
blank plug |
M 25 x 1,5 |
4 |
.
