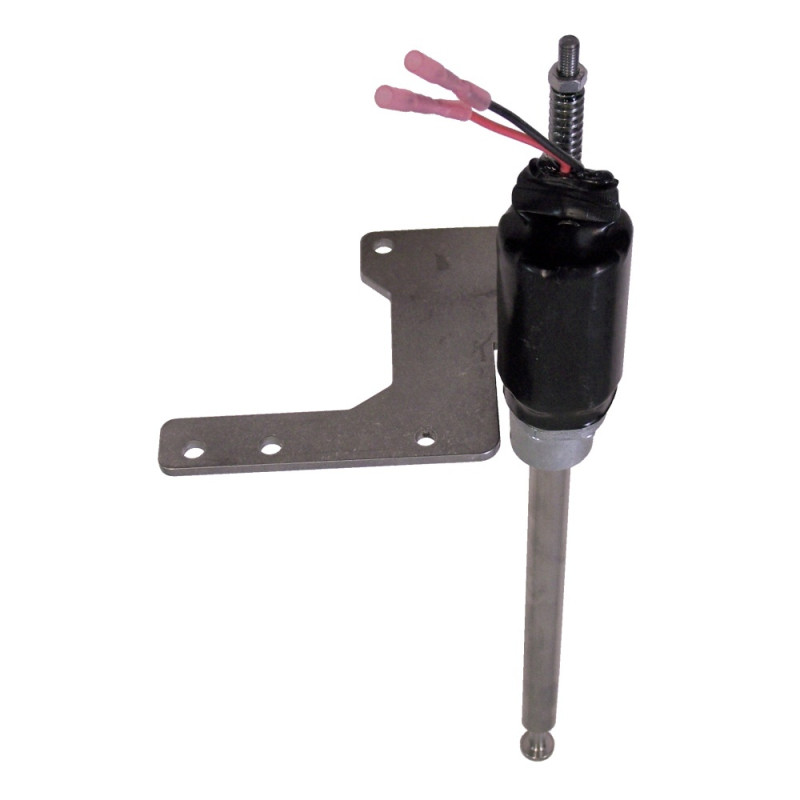

Schalteinheit Exploded View

Type: F443747
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2266
* Schalteinheit Exploded View IR 56 Facelift No 612 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F29176 Blech 144 x 100 x 4 1
2 F20203 Sechskantmutter DIN934 M 6 1
3 F20570 U-Scheibe DIN125 A 4,3 2
4 F245844 Zylinderschraube DIN912 M 4 x 16 2
5 F459201 Spindel IR 28/56 1
6 F444874 Minihubgetriebe IR 28/56/112 1
