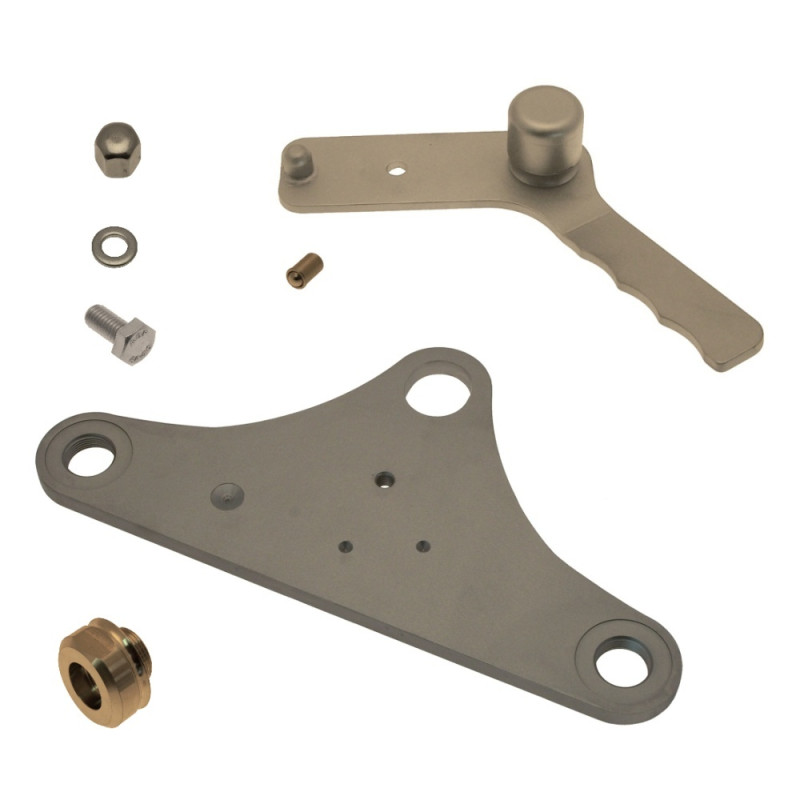

Traverse Exploded View 1

Type: F440179
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2358

* Traverse Exploded View 1 IR 56 No. 210 and higher:

Ask a question about this product

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Traverse Exploded View 1

Type: F440179
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2358

* Traverse Exploded View 1 IR 56 No. 210 and higher:
--F240178 Plate
--F240176 Flange
--101069 locking device
--F20455 Hexagonal bolt
--F22888 Washer
--F20134 Cap nut

Pos. No.	Part No.	Description	Add. Info	Required
1	F240178	Plate	310 x 153.1 x 10	1
2	F240176	Flange	Ø 14,5 x Ø 40 x 27,3	2
3	101069	locking device	IR 28/56	1
4	F20455	Hexagonal bolt	DIN933 M 8 x 25	1
5	F22888	Washer	DIN125 A 8,4	1
6	F20134	Cap nut	DIN917 M 8	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Required
1	F240178	Plate	310 x 153.1 x 10	1
2	F240176	Flange	Ø 14,5 x Ø 40 x 27,3	2
3	101069	locking device	IR 28/56	1
4	F20455	Hexagonal bolt	DIN933 M 8 x 25	1
5	F22888	Washer	DIN125 A 8,4	1
6	F20134	Cap nut	DIN917 M 8	1
