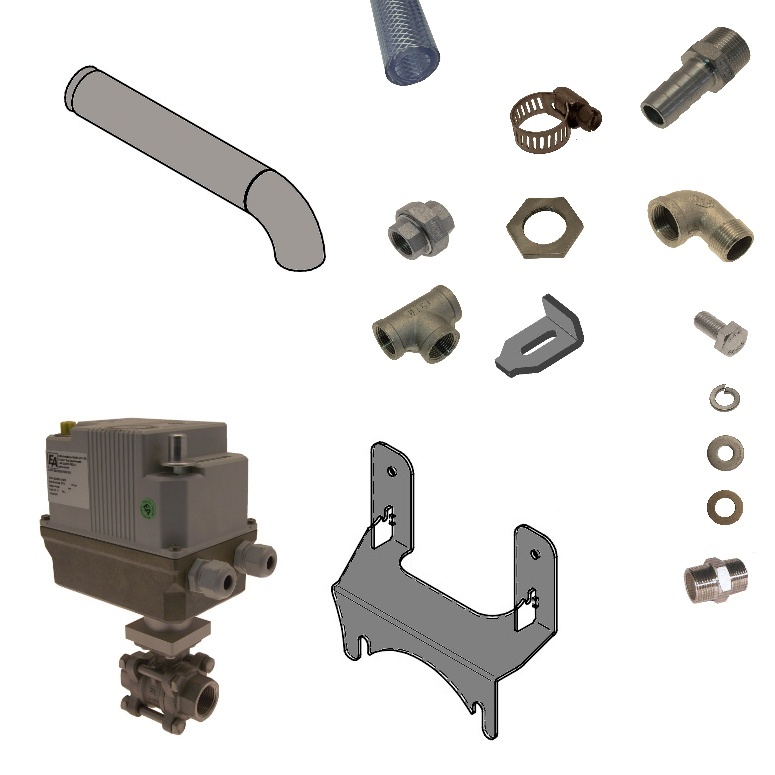

Valve Unit Complete 1

Type: F452506
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2185

* Valve Unit Complete 1 IR 112:

Ask a question about this product

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Valve Unit Complete 1

Type: F452506
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2185

* Valve Unit Complete 1 IR 112:
--F450139 Housing
--F250092 Bracket
--F26600 Disc
--F21260 Spring lock washer
--F20687 Hexagonal bolt
--F252433 Angle inside-to-outside
--F250159 Hose socket
--F27648 Hose
--F27648 Hose
--F27648 Hose
--F252274 Disc
--F27648 Hose
--F20165 Hose clamp
--F255730 Nut
--F452235 socket
--F250163 Double nipple
--F252447 Screw joint
--F250157 T-piece
--F249433 valve

Valve Unit Complete 1 for IR112

Pos No.	Part No.	Description	Add info	Required
1	F450139	Housing	IR112	1
2	F250092	Bracket	44x35x16x4	2
3	F26600	Disc	8.5x20x2	2
4	F21260	Spring Lock Washer	DIN127 B 8	2
5	F20687	Hexagonal Bolt	DIN933 M 8x35	2
6	F252433	Angle inside-to-outside	90° FG 2324 3/4"	5
7	F250159	Hose Socket	R 3/4" FG 30 2420	6
8	F27648	Hose	19x5	0.45
9	F27648	Hose	19x5	0.60
10	F27648	Hose	19x5	0.75
11	F252274	Disc	20.3x37x3	1
12	F27648	Hose	19x5	0.20
13	F20165	Hose Clamp	HAS 16 Ø 17-38	12
14	F255730	Nut	3/4" x SW 36 x 4	1
15	F452235	Socket	IR 112	1
16	F250163	Double Nipple	R 3/4" a - a	2
17	F252447	Screw Joint	3/4"	1
18	F250157	T-Piece	R 3/4" i - i - i	1
19	F249433	Valve	ZA310024-ES201210	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Valve Unit Complete 1 for IR112

Pos No.	Part No.	Description	Add info	Required
1	F450139	Housing	IR112	1
2	F250092	Bracket	44x35x16x4	2
3	F26600	Disc	8.5x20x2	2
4	F21260	Spring Lock Washer	DIN127 B 8	2
5	F20687	Hexagonal Bolt	DIN933 M 8x35	2
6	F252433	Angle inside-to-outside	90° FG 2324 3/4"	5
7	F250159	Hose Socket	R 3/4" FG 30 2420	6
8	F27648	Hose	19x5	0.45
9	F27648	Hose	19x5	0.60
10	F27648	Hose	19x5	0.75
11	F252274	Disc	20.3x37x3	1
12	F27648	Hose	19x5	0.20
13	F20165	Hose Clamp	HAS 16 Ø 17-38	12
14	F255730	Nut	3/4" x SW 36 x 4	1
15	F452235	Socket	IR 112	1
16	F250163	Double Nipple	R 3/4" a - a	2
17	F252447	Screw Joint	3/4"	1
18	F250157	T-Piece	R 3/4" i - i - i	1
19	F249433	Valve	ZA310024-ES201210	2
