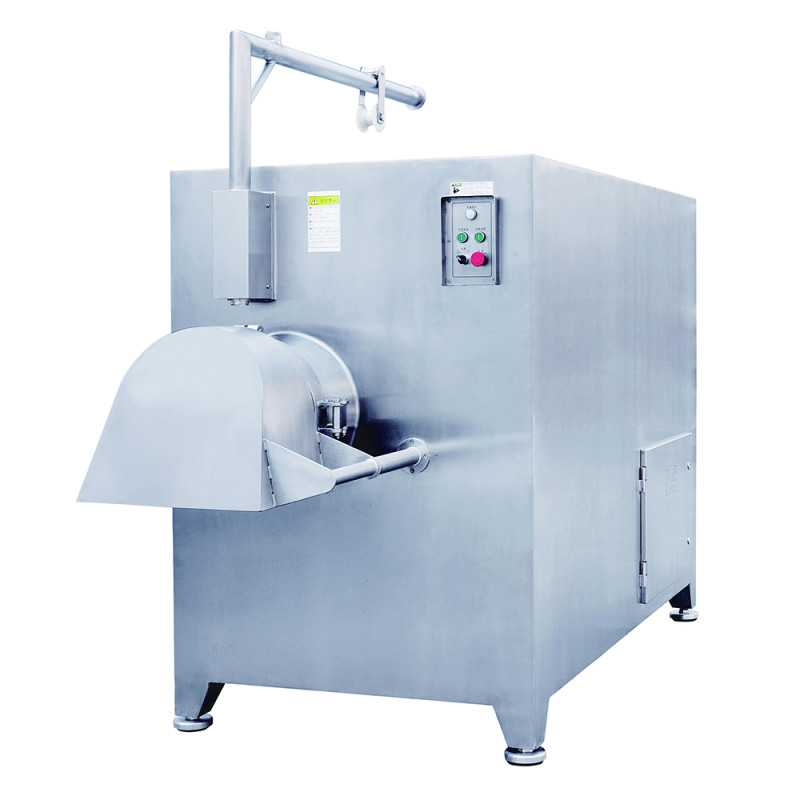

Frozen Meat Block Grinder CM-300

Frozen Meat Block Grinder CM-300 The heavy-duty Industrial meat grinder for fresh and frozen me... Read More

Stock: On order
Brand: 1287
Type: Output: 3000-5000 Kg/hr

Available Options

Grinder options

Cleaning Cart

Auger Screw for Grinder

Auger screw for fresh product

Auger screw for frozen product

Power Option

Optional Accessories for Grinder

Precutter

Hole Plate

Knives

Belt

Front Shaft sleeve

Qty

Request Quote

From Same Category
Same Brand

Quickview

Fresh and Frozen Meat Grinder CM-130

Request Quotes

Quickview

Fresh or Frozen Meat Grinder CM-160

Request Quotes

Quickview

Fresh and Frozen Two Screw Meat Grinder CM-200

Request Quotes

Quickview

Stage 3 Grinder: Industrial Heavy-Duty Meat & Bone Grinder (CM-250)

Request Quotes

Quickview

Fresh & Frozen Meat Grinder

Request Quotes

Tags: Mincers

Description

Frozen Meat Block Grinder CM-300

The heavy-duty Industrial meat grinder for fresh and frozen meat CM-300 represents a high-capacity particle reduction system engineered to fulfill the rigorous demands of large-scale meat processing plants. If your enterprise is searching for an ultra-reliable frozen meat block grinder in Canada, evaluating an elite high-yield frozen meat mincer in Canada, or configuring a heavy-torque frozen bone grinder line to reduce bone-in poultry or fish frames, this automated asset delivers premier production performance. Specially built for extreme manufacturing environments, it functions as an advanced deep-frozen block mincer capable of directly processing large, solid pieces of meat down to -18°C without tedious or bacteria-prone thawing cycles. The CM-300 uses a massive, high-torque compression screw to feed bulk blocks uniformly through engineered knife packages—guaranteeing exceptional output consistency, zero material smearing, and superior particle definition.

Key Features & Engineering Advantages

High-Torque Volumetric Feed Screw: Raw bulk blocks in the massive loading hopper are forced seamlessly to the precut plates via a low-RPM, heavy-duty rotating compression screw, avoiding product backing or structural material over-working.
Clean and Balanced Particle Shearing: Materials are cleanly divided into highly uniform particles through the relative high-speed slicing movement between the rotational knives and selected hole-plates.
Multi-Plate Knife Combinations: Outstanding particle definition and grain clarity are easily achieved by configuring specialized tool setups (pre-cutter, star knife, plate with holes, etc.) customized to your processing specs.
All-Stainless Sanitary Build: The entire main frame body, large-volume hopper tracking, and active food contact components are fabricated from premium food-grade stainless steel plates for fast chemical washdowns.
Low Harmonic Floor Vibration: Heavyweight internal gears are balanced to maintain low operational noise signatures and ensure quiet, stable shop floor operation under continuous industrial multi-shift runs.

Technical Product Specifications

Massive Production Capacity	3,000 - 5,000 kg / hour (Continuous High-Output Operation)
Input Core Temperature Range	-5°C down to -18°C (Specialized for deep-frozen whole blocks)
Rotary Compression Screw Speed	47 rpm (High-Torque Reduction Design)
Available Optional Hole Plates	4, 6, 8, 10, 12, 16, 18, 20, 22 mm diameters
Total Motor Drive Power Load	55 kW Heavy-Duty High-Performance Motor
Flexible Electrical Power Supply	220V / 480V / 575V • 60Hz • 3Ph Multi-Voltage Grid Configuration
Machine External Footprint (L x W x H)	2620 mm × 1210 mm × 1700 mm
Recommended Safe Installation Area	3000 mm × 2500 mm × 3000 mm
Equipment Structural Weight	≈ 2,400 kg (Massive Platform for Vibration Isolation)

* Note: Engineered with an accessible mechanical layout that enables fast extraction of the main compression screw and active cutting plates. This open design avoids product stagnation, allowing rapid sanitation washdowns to fulfill strict inspectorial food safety regulations.
