Description

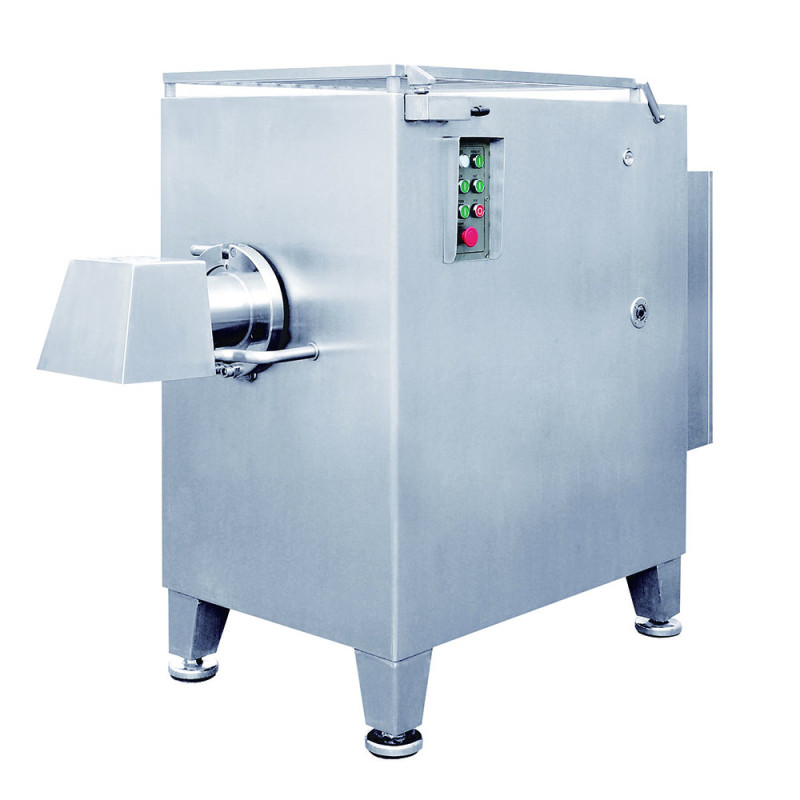

Fresh and Frozen Meat Grinder CM-130

The industrial-grade Fresh and Frozen Meat Grinder CM-130 represents a heavy-duty, versatile sizing solution built to deliver high-capacity particle reduction across demanding manufacturing floors. If your food facility is hunting down a powerful fresh meat grinder, evaluating an ultra-reliable frozen meat grinder, or sourcing a premier industrial meat grinder in Canada, this automated mincer is engineered to maximize throughput. Perfectly optimized for food processors checking out a top-tier commercial meat grinder in Brampton or looking for a rugged industrial meat grinder for sale near me, the CM-130 specializes in mincing both fresh proteins and tempered frozen blocks cleanly. By utilizing a high-torque rotary feed screw, it seamlessly pushes materials through engineered knife sets without tearing or smearing, preserving natural binding properties and high product quality on every shift.

Key Features & Operational Advantages

Advanced Volumetric Feed Screw: Raw materials within the high-capacity hopper are pushed uniformly to the precut plates via a high-torque rotating screw, avoiding product backtracking or thermal buildup.
Clean Particle Cut Definition: Materials are sliced into highly uniform particles through the relative high-speed shearing movement between the knife and the selected hole-plate.
Multi-Stage Enterprise Knife Combinations: Outstanding grain and particle results are easily achieved by combining specialized tool setups (pre-cutter, star knife, plate with holes, etc.).
Balanced, Low-Noise Operation: Heavyweight internal mechanical components are carefully balanced to maintain low operational noise boundaries and minimal structural footprint vibration.
Premium Sanitary SUS Alloy: The main structural body and all inner food-contact areas are entirely fabricated from premium food-grade stainless steel plates for fast chemical washdowns.

Technical Product Specifications

Hourly Production Capacity	1,000 - 2,000 kg / hour (High-Yield Operation)
Optimal Processing Core Temperature	0°C to -5°C (Specialized for tempered frozen meat blocks)
Available Optional Hole Plates	3, 5, 7, 10, 13, 20, 25, 30, 35 mm diameters
Rotary Screw Operating Speeds	106 / 160 rpm
Total Motor System Power	9 / 11 kW High-Torque Multi-Speed Drive Engine
Flexible Electrical Power Supply	220V / 480V / 575V • 60Hz • 3Ph Multi-Voltage Configuration
Machine External Footprint (L x W x H)	1480 mm × 750 mm × 1150 mm
Recommended Safety Installation Boundary	2000 mm × 1500 mm × 2000 mm
Equipment Structural Weight	≈ 600 kg (Robust Stability Framework)
System Compliance Certifications	Fully CE Certified Configuration Standard

* Note: Engineered with a simplified mechanical layout that allows toolless extraction of the cutting worm and blade plates. This open design eliminates bacteria traps, enabling fast, total sanitation washdowns to satisfy rigorous regulatory food inspections.
