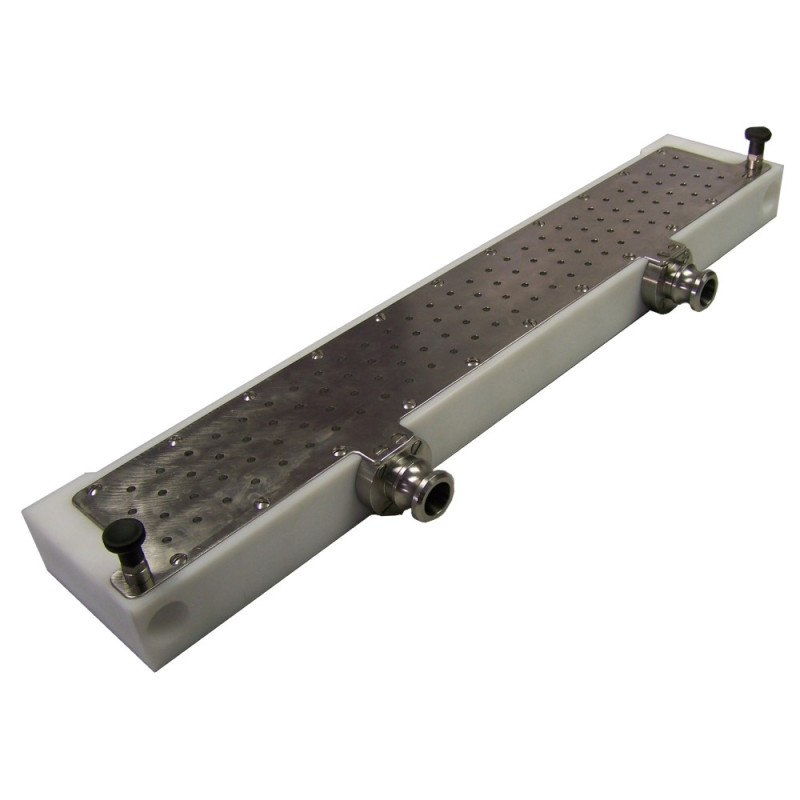

Ruhle Distributor Unit Exploded View
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F250259 | Block | 760 x 137.5 x 55 | 1 |
 |
2 | F29312 | Seal | NIPSL 310 blue | 112 |
 |
3 | F29313 | Bushing | Ø 4,1 x Ø 18 x 12 | 112 |
 |
4 | F250261 | Lid | 749,6 x 136,6 x 4 | 1 |
 |
5 | F25965 | Cylindrical pin | ISO2338 - Ø 6 m6 x 20 | 2 |
 |
6 | F250369 | Seal | Ø 3 x 1516 | 1 |
 |
7 | F250260 | Lid | 704,5 x 114,5 x 20 | 1 |
|
8 | F29312 | Seal | NIPSL 310 blue | 112 |
 |
9 | F250262 | Lid | 704.6 x 136.6 x 4 | 1 |
 |
10 | F29100 | Raised countersunk-head screw | DIN964 M 6 x 50 | 22 |
 |
11 | F29099 | Sleeve nut | M 6 x 15 | 22 |
 |
12 | F29102 | Threaded insert | M 6 x M10x1,5 x 14 | 8 |
 |
13 | F240240 | O-ring | Ø 26 x 2 | 2 |
 |
14 | F250263 | socket | Ø 25 x 60 x 70 | 2 |
 |
15 | F24277 | Countersunk bolt | DIN963 M 6 x 25 | 8 |
 |
16 | F21957 | Countersunk bolt | DIN963 M 6 x 10 | 8 |
 |
17 | F250264 | Bushing | Ø 12 x Ø 16 x 9 | 2 |
 |
18 | F29233 | Locking bolt | GN 617-6-A-NI | 2 |
