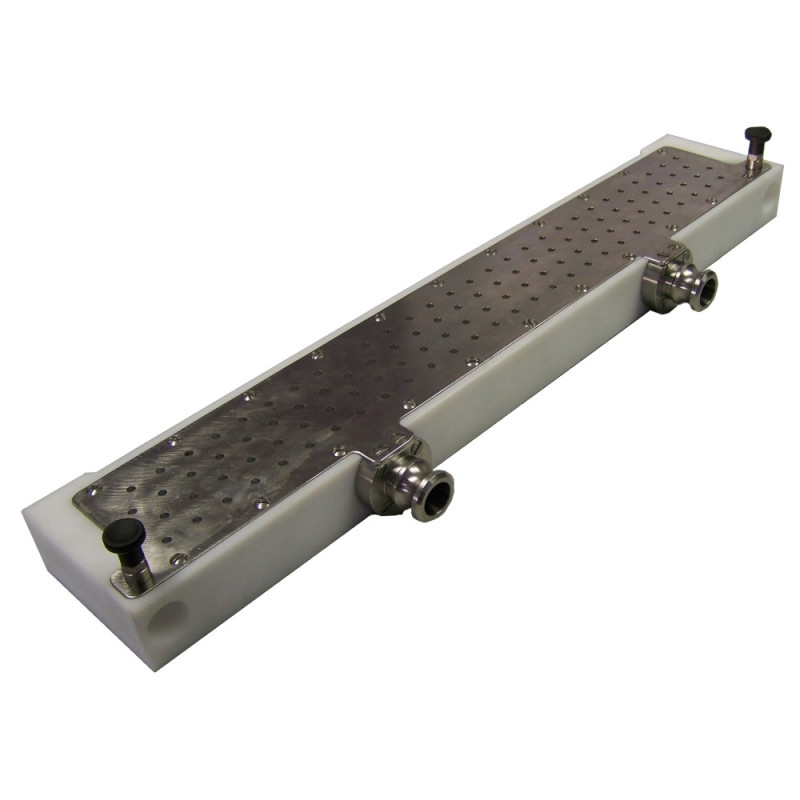

Distributor Unit Exploded View

Type: F450258
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2109

* Distributor Unit Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Distributor Unit Exploded View

Type: F450258
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2109

* Distributor Unit Exploded View IR 112:
--F250259 Block
--F29312 Seal
--F29313 Bushing
--F250261 Lid
--F25965 Cylindrical pin
--F250369 Seal
--F250260 Lid
--F29312 Seal
--F250262 Lid
--F29100 Raised countersunk-head screw
--F29099 Sleeve nut
--F29102 Threaded insert
--F240240 O-ring
--F250263 socket
--F24277 Countersunk bolt
--F21957 Countersunk bolt
--F250264 Bushing
--F29233 Locking bolt

Ruhle Distributor Unit Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F250259	Block	760 x 137.5 x 55	1
2	F29312	Seal	NIPSL 310 blue	112
3	F29313	Bushing	Ø 4,1 x Ø 18 x 12	112
4	F250261	Lid	749,6 x 136,6 x 4	1
5	F25965	Cylindrical pin	ISO2338 - Ø 6 m6 x 20	2
6	F250369	Seal	Ø 3 x 1516	1
7	F250260	Lid	704,5 x 114,5 x 20	1
8	F29312	Seal	NIPSL 310 blue	112
9	F250262	Lid	704.6 x 136.6 x 4	1
10	F29100	Raised countersunk-head screw	DIN964 M 6 x 50	22
11	F29099	Sleeve nut	M 6 x 15	22
12	F29102	Threaded insert	M 6 x M10x1,5 x 14	8
13	F240240	O-ring	Ø 26 x 2	2
14	F250263	socket	Ø 25 x 60 x 70	2
15	F24277	Countersunk bolt	DIN963 M 6 x 25	8
16	F21957	Countersunk bolt	DIN963 M 6 x 10	8
17	F250264	Bushing	Ø 12 x Ø 16 x 9	2
18	F29233	Locking bolt	GN 617-6-A-NI	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Ruhle Distributor Unit Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F250259	Block	760 x 137.5 x 55	1
2	F29312	Seal	NIPSL 310 blue	112
3	F29313	Bushing	Ø 4,1 x Ø 18 x 12	112
4	F250261	Lid	749,6 x 136,6 x 4	1
5	F25965	Cylindrical pin	ISO2338 - Ø 6 m6 x 20	2
6	F250369	Seal	Ø 3 x 1516	1
7	F250260	Lid	704,5 x 114,5 x 20	1
8	F29312	Seal	NIPSL 310 blue	112
9	F250262	Lid	704.6 x 136.6 x 4	1
10	F29100	Raised countersunk-head screw	DIN964 M 6 x 50	22
11	F29099	Sleeve nut	M 6 x 15	22
12	F29102	Threaded insert	M 6 x M10x1,5 x 14	8
13	F240240	O-ring	Ø 26 x 2	2
14	F250263	socket	Ø 25 x 60 x 70	2
15	F24277	Countersunk bolt	DIN963 M 6 x 25	8
16	F21957	Countersunk bolt	DIN963 M 6 x 10	8
17	F250264	Bushing	Ø 12 x Ø 16 x 9	2
18	F29233	Locking bolt	GN 617-6-A-NI	2
