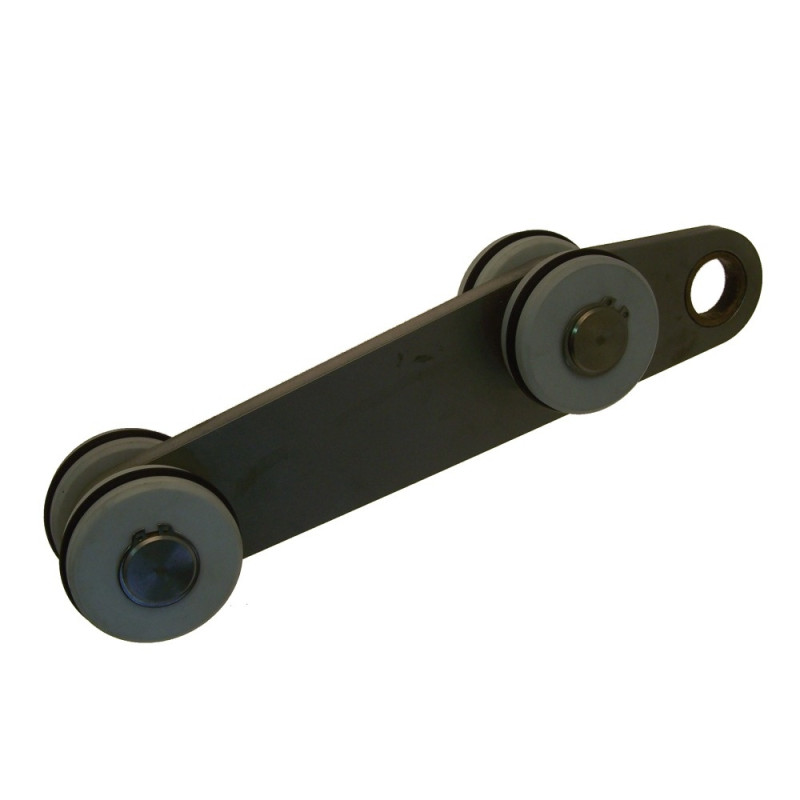

Lever Exploded View - IR 112

Type: F450284
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2117

* Lever Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Lever Exploded View - IR 112

Type: F450284
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2117

* Lever Exploded View IR 112:
--F250291 Lever
--F250292 Bolt
--F250293 Bolt
--F250294 Rolle
--F22594 Slide bushing
--F27896 O-ring
--F22116 Disc
--F20685 Hexagonal bolt

Lever Exploded View - IR 112

Pos. No.	Part No.	Description	Add. Info	Required
1	F250291	Lever	300 x 65,1 x 10	1
2	F250292	Bolt	Ø 40 x 36,5	2
3	F250293	Bolt	Ø 40 x 43	2
4	F250294	Rolle	Ø 25,2 x Ø 60 x 19,3	4
5	F22594	Slide bushing	Ø 25 x Ø 32 x 9,8	1
6	F27896	O-ring	Ø 50 x 5	4
7	F22116	Disc	Ø 6,5 x Ø 30 x 3	4
8	F20685	Hexagonal bolt	DIN933 M 6 x 10	4
