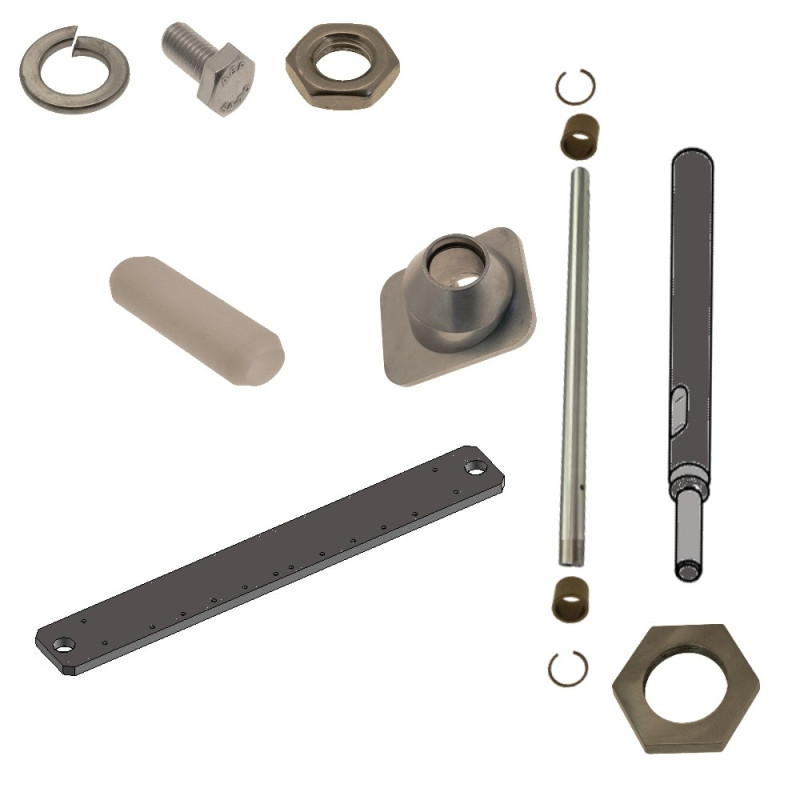

Guide Complete

Type: F450078
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2102

* Guide Complete IR 112:

Ask a question about this product

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Guide Complete

Type: F450078
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2102

* Guide Complete IR 112:
--F250236 Traverse
--F26379 Spring lock washer
--F22138 Hexagonal bolt
--F250243 Shaft
--F240138 Bushing
--F20047 Hexagonal nut
--F450239 Guide tube
--F240778 Nut
--F451515 bearing

Pos. No.	Part No.	Description	Add. Info	Required
1	F250236	Traverse	900 x 120 x 20	1
2	F26379	Spring lock washer	DIN127 B 10	4
3	F22138	Hexagonal bolt	DIN933 M10 x 25	4
4	F250243	Shaft	Ø 16 x 150	10
5	F240138	Bushing	Ø 22 x 72	10
6	F20047	Hexagonal nut	DIN439 M 10	10
7	F450239	Guide tube	IR 112	2
8	F240778	Nut	M 40 x 1,5 x SW 60 x 6	4
9	F451515	bearing	IR 28/56	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Required
1	F250236	Traverse	900 x 120 x 20	1
2	F26379	Spring lock washer	DIN127 B 10	4
3	F22138	Hexagonal bolt	DIN933 M10 x 25	4
4	F250243	Shaft	Ø 16 x 150	10
5	F240138	Bushing	Ø 22 x 72	10
6	F20047	Hexagonal nut	DIN439 M 10	10
7	F450239	Guide tube	IR 112	2
8	F240778	Nut	M 40 x 1,5 x SW 60 x 6	4
9	F451515	bearing	IR 28/56	2
