Bracket Exploded View

Bracket Exploded View
Bracket Exploded View
Bracket Exploded View​   Pos. No.  Part No.  Description  Add. Info  ... Read More

  • Stock: On Order
  • Brand: Ruhle
  • Type: F450721

Available Options

Request Quote
Bearing Exploded View - F451515
Quickview
Bearing Exploded View - F451515
View Details Request Quotes
Block Complete Ruhle Injector IR112
Quickview
Block Complete Ruhle Injector IR112
View Details Request Quotes
Connecting Rod Complete - IR 112 Needle beam
Quickview
Connecting Rod Complete - IR 112 Needle beam
View Details Request Quotes
Cover Exploded View
Quickview
Cover Exploded View
View Details Request Quotes
Distributor Unit Complete
Quickview
Distributor Unit Complete
View Details Request Quotes
Distributor Unit Exploded View
Quickview
Distributor Unit Exploded View
View Details Request Quotes
Guide Complete Ruhle IR112 Injector
Quickview
Guide Complete Ruhle IR112 Injector
View Details Request Quotes
Housing Complete - Needle beam
Quickview
Housing Complete - Needle beam
View Details Request Quotes

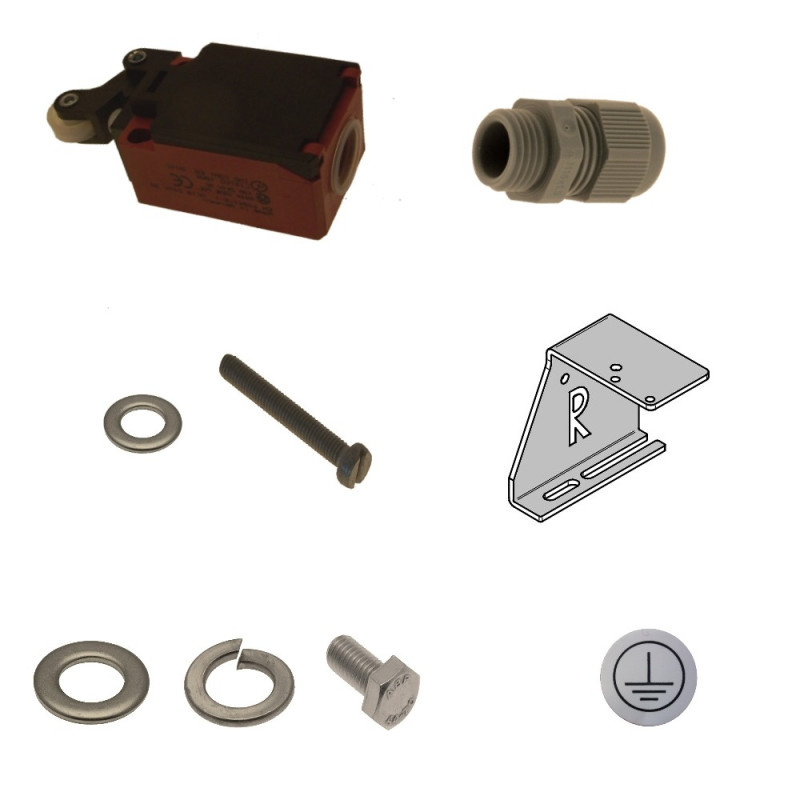

Bracket Exploded View​

  Pos. No.  Part No.  Description  Add. Info  Required
F250272 1 F250272 Bracket 83 x 78 x 69 x 2,5 1
F20258 2 F20258 Washer DIN125 A 6,4 2
F24031 3 F24031 Spring lock washer DIN127 B 6 2
F20685 4 F20685 Hexagonal bolt DIN933 M 6 x 10 2
F21045 5 F21045 Washer DIN125 A 5,3 2
F25987 6 F25987 Cylinder head screw DIN84 M 5 x 30 2
F29040 7 F29040 Limit switch Ti2-SU1Z Hw 1
F148541 8 F148541 Sticker BMK02 1
F20948 9 F20948 Cable gland M 16 x 1.5 1
