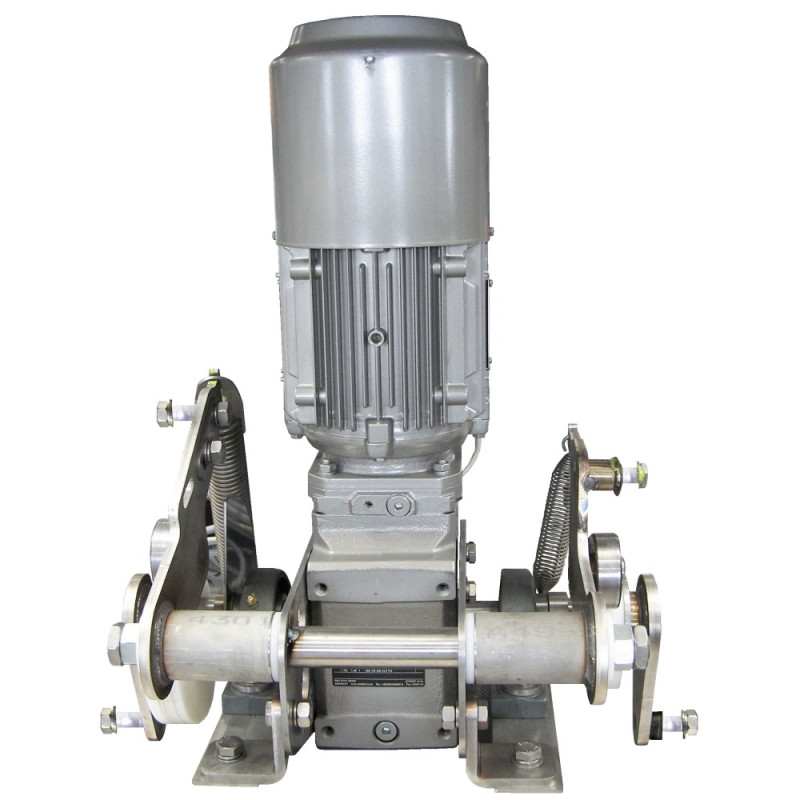

Drive Assembly IR56 No. 473 and Higher
| Pos No. | Part No. | Description | Add info | Required | |
 |
1 | 105687 | Welle | Ø 30 x 388 | 1 |
 |
2 | 105871 | Lever | IR 56 | 1 |
 |
3 | 105873 | Lever | IR 56 | 1 |
 |
4 | 105876 | Storage | IR 56 | 1 |
 |
5 | 105878 | Storage | IR 56 | 1 |
 |
6 | F240232 | Ring | Ø 25,2 x Ø 50 x 6 | 4 |
 |
7 | F29385 | plate / sheet | 270 x 160 x 5 | 2 |
 |
8 | F240220 | Bracket | 65 x 65 x 50 x 8 | 2 |
 |
9 | F240911 | plate / sheet | 270 x 50 x 3 | 2 |
 |
10 | F242045 | Hook | 45,2 x 30 x 22 | 1 |
 |
11 | F24518 | Spring | Ø 2,0 x De27 x 85 | 1 |
 |
12 | F445694 | Spring | IR 28/56 / IR 112 | 1 |
 |
13 | F26379 | Federring | DIN127 B 10 | 8 |
 |
14 | F20954 | Hexagonal bolt | DIN933 M 10 x 20 | 8 |
|
15 | F20210 | Spring Washer | DIN127 A 12 | 8 |
 |
16 | F20204 | Hexagonal nut | DIN934 M 12 | 2 |
 |
17 | F20323 | Hexagonal bolt | DIN933 M 12 x 25 | 2 |
 |
18 | F20692 | Hexagonal bolt | DIN933 M 12 x 50 | 4 |
 |
19 | F20230 | Hexagonal bolt | DIN933 M 12 x 40 | 2 |
 |
20 | F21024 | Disc | Ø 13 x Ø 35 x 5 | 4 |
 |
21 | F20202 | Washer | DIN125 A 13 | 2 |
|
22 | F20450 | Hexagonal nut | DIN934 M 20 x 1,5 | 2 |
 |
23 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
 |
24 | F240327 | Bracket | 70 x 57,5 x 30 | 1 |
 |
25 | F29156 | Initiator | BI8U-M18-AP6X 7M | 1 |
 |
26 | 105886 | Gear motor | SUZ 506A-91L2 BR10 | 1 |
 |
27 | 106578 | Programmed FC 2.2kW | E82MV222_4B001 | 1 |
 |
28 | F20698 | Cable | ÖZ-J 4 x 1.5 mm² | 2.5 m |
 |
29 | 106619 | Cable | Liycy 7 x 0.5 mm² | 2.1 m |
|
30 | 106619 | Cable | Liycy 7 x 0.5 mm² | 2.1 m |
 |
31 | F27425 | Cable | ÖZ-J 5 x 1.5 mm² | 2.2 m |
 |
32 | 106134 | Cable FC value beam drive | IR 28/56 Facelift | 1 |
 |
33 | F29057 | Cable gland | M 25 x 1.5 | 1 |
 |
34 | F20948 | Cable gland | M 16 x 1.5 | 3 |
 |
35 | 104152 | Cable gland | PERFECT-KV-EMV M20x1.5 | 1 |
 |
36 | F25780 | Hexagonal nut | M 20 x 1,5 | 1 |
 |
37 | F23034 | Cylinder head screw | DIN84 M 4 x 35 | 4 |
|
38 | F20570 | Washer | DIN125 A 4,3 | 4 |
 |
39 | F21045 | Washer | DIN125 A 5,3 | 4 |
 |
40 | F29058 | Cable gland | M 20 x 1,5 | 1 |
