Drive Assembly

Type: 107007
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1926

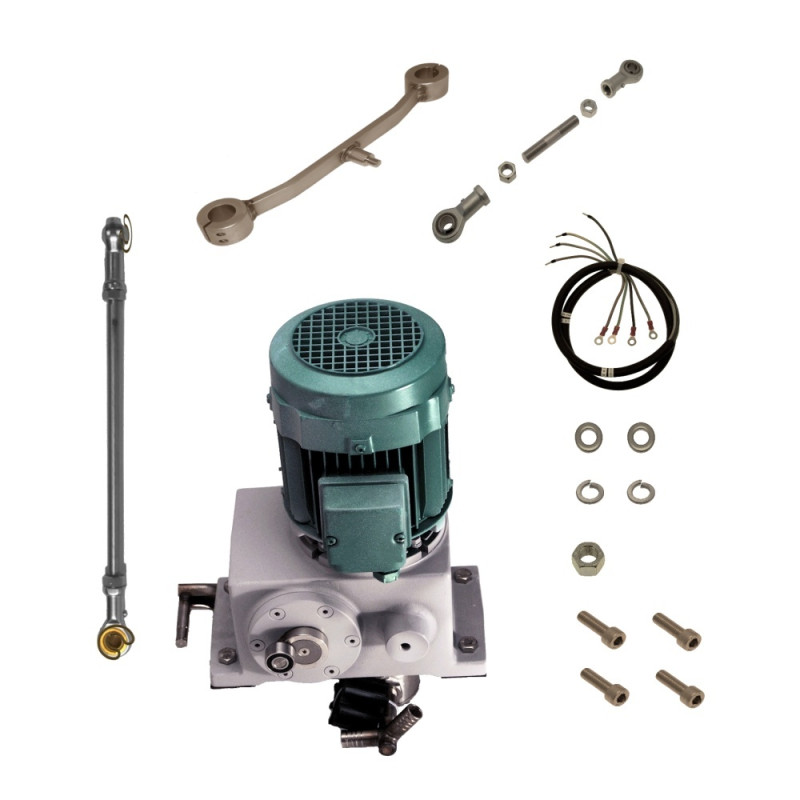

* Drive Assembly PR 10:

Ask a question about this product

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Assembly

Type: 107007
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1926

* Drive Assembly PR 10:
--F41736 Gear box
--F457727 Connecting rod
--F41660 Traverse
--F457729 Connecting rod
--F447392 Cable for main drive
--F21262 Annular spring
--F20202 Washer
--F20210 Spring lock washer
--F20204 Hexagonal nut
--F22621 Cylinder head screw

Pos. No.	Part No.	Description	Add. Info	Quantity
1	F41736	Gear box	PR 8 - 15	1
2	F457727	Connecting rod	PR 8 - 15	1
3	F41660	Traverse	PR 8 - 15	1
4	F457729	Connecting rod	PR 8 - 20	1
5	F447392	Cable for main drive	PR 8 / 10 / 15 / 20	1
6	F21262	Annular spring	Ø 12 x Ø 30 x 2,2	2
7	F20202	Washer	DIN125 A 13	2
8	F20210	Spring lock washer	DIN127 B 12	2
9	F20204	Hexagonal nut	DIN934 M 12	1
10	F22621	Cylinder head screw	DIN912 M 8 x 25	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Quantity
1	F41736	Gear box	PR 8 - 15	1
2	F457727	Connecting rod	PR 8 - 15	1
3	F41660	Traverse	PR 8 - 15	1
4	F457729	Connecting rod	PR 8 - 20	1
5	F447392	Cable for main drive	PR 8 / 10 / 15 / 20	1
6	F21262	Annular spring	Ø 12 x Ø 30 x 2,2	2
7	F20202	Washer	DIN125 A 13	2
8	F20210	Spring lock washer	DIN127 B 12	2
9	F20204	Hexagonal nut	DIN934 M 12	1
10	F22621	Cylinder head screw	DIN912 M 8 x 25	4
