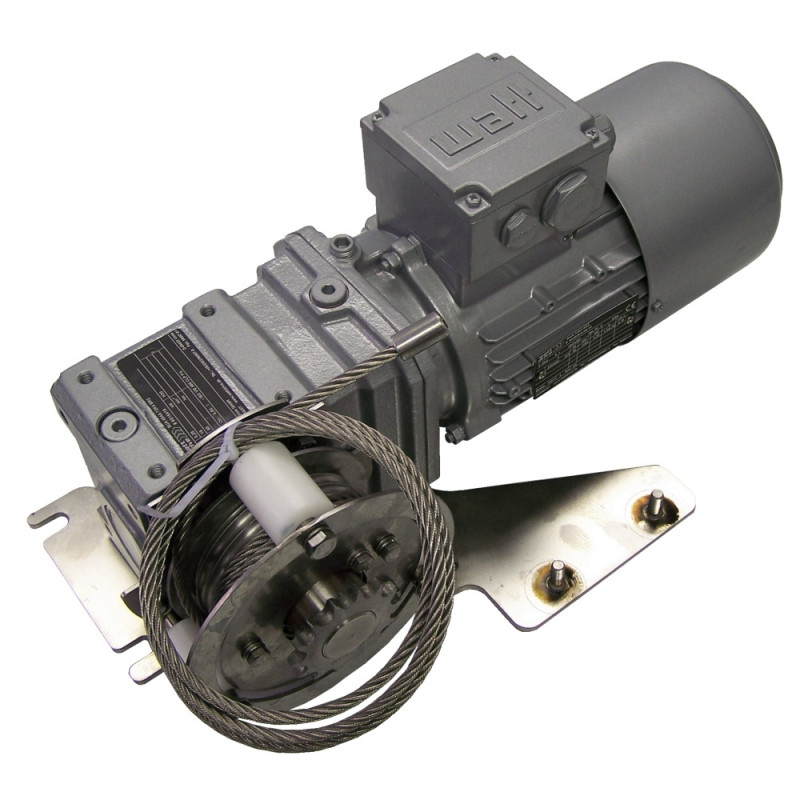

Drive Complete 4 IR56 Injector No. 210 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F441275 | Starting sheet | IR 56 / SR 2 T | 1 |
 |
2 | 104183 | Housing | IR 56 | 1 |
 |
3 | F21281 | Hexagonal bolt | DIN933 M 8 x 16 | 8 |
 |
4 | F22888 | Washer | DIN125 A 8,4 | 4 |
 |
5 | F21260 | Spring lock washer | DIN127 B 8 | 7 |
 |
6 | 101185 | Drive shaft | IR 56 | 1 |
 |
7 | F240581 | Tube | Ø 10 x 1 x 58 | 3 |
 |
8 | F29343 | Rolle | Ø 10,2 x Ø 30 x 41 | 3 |
 |
9 | F240582 | Disc | Ø 120 x Ø 150 x 2,5 | 1 |
 |
10 | F27299 | Hexagonal bolt | DIN933 M 8 x 70 | 3 |
 |
11 | F440963 | Rolle | IR 56 | 1 |
 |
12 | F240583 | Disc | Ø 30,5 x Ø 45 x 2,5 | 1 |
 |
13 | F22860b | Disc | Ø 30 x Ø 42 x 0,5 | 1 |
 |
14 | F20217 | Locking ring | DIN471 Ø 30 x 1,5 | 1 |
 |
15 | F20831 | Spring key | A 8 x 7 x 50 | 2 |
 |
16 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 4 |
 |
17 | F29039 | Gear motor with break | SUA 454A-72K4 BR2 | 1 |
 |
18 | F29057 | Cable gland | M 25 x 1.5 | 2 |
