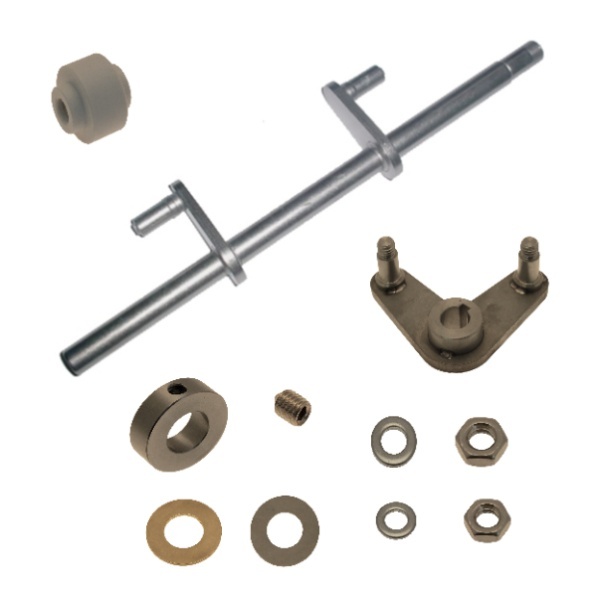

Drive Shaft Exploded View 2 Ruhle IR56 Injector F42284
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F441845 | Drive shaft | IR 28/56 | 1 |
 |
2 | F29341 | Rolle | Ø 50 x 45 | 2 |
 |
3 | F440337 | Lever | IR 28/56 | 1 |
 |
4 | F22916 | Washer | DIN125 A 15 | 1 |
 |
5 | F26133 | Hexagonal nut | DIN439 M 14 | 1 |
|
6 | F20202 | Washer | DIN125 A 13 | 2 |
|
7 | F20179 | Hexagonal nut | DIN439 M 12 | 2 |
 |
8 | F244906 | compensating disc | Ø 20,3 x Ø 39 x 1,5 | 1 |
 |
9 | F248683 | compensating disc | Ø 20,3 x Ø 39 x 0,65 | 1 |
 |
10 | F21907 | Ring | Ø 20,1 x Ø 40 x 12 | 1 |
 |
11 | F20837 | Threaded pin | DIN914 M 8 x 10 | 1 |
