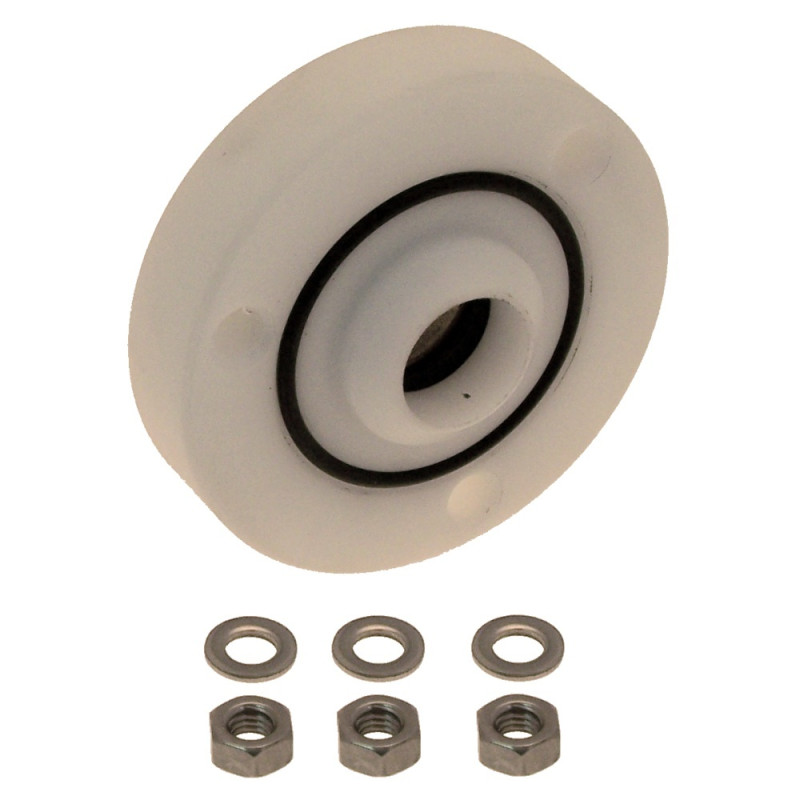

Flange Exploded View Ruhle IR56 Injector No. 210 and Higher
- Stock: On order
- Brand: Ruhle
- Type: F442105
Flange Complete IR56 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F29337 | Flange | Ø 20,1 x Ø 75 x 33 | 1 |
 |
2 | F28030 | Radial shaft seal | Ø 20 x Ø 28 x 6 | 1 |
 |
3 | F252423 | Slide bushing | DIN2795 Ø 20 x Ø 28 x 16 | 1 |
 |
4 | F20157 | O-Ring | Ø 42 x 2,5 | 1 |
 |
5 | F20258 | Washer | DIN125 A 6,4 | 3 |
 |
6 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
