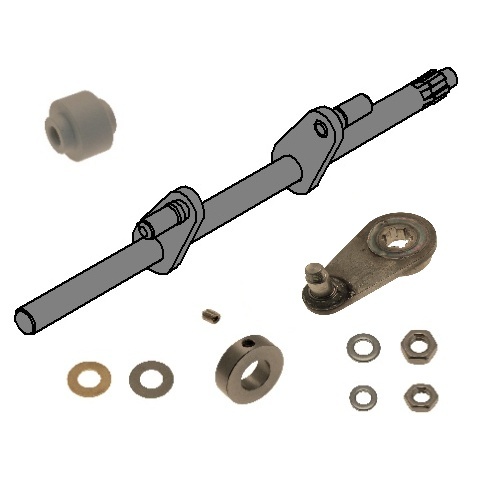

Drive Shaft Exploded View

Type: F42337
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2373
* Drive Shaft Exploded View IR 56 No. 210 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F441844 Drive shaft IR 28/56 1
2 F29341 Rolle Ø 50 x 45 2
3 F440324 Lever IR 28/56 1
4 F22916 Washer DIN125 A 15 1
5 F26133 Hexagonal nut DIN439 M 14 1
6 F20202 Washer DIN125 A 13 1
7 F20179 Hexagonal nut DIN439 M 12 1
8 F244906 compensating disc Ø 20,3 x Ø 39 x 1,5 1
9 F248683 compensating disc Ø 20,3 x Ø 39 x 0,65 1
10 F21907 Ring Ø 20,1 x Ø 40 x 12 1
11 F20837 Threaded pin DIN914 M 8 x 10 1
12 F25430 Locking ring DIN471 Ø 20 x 1,2 1
