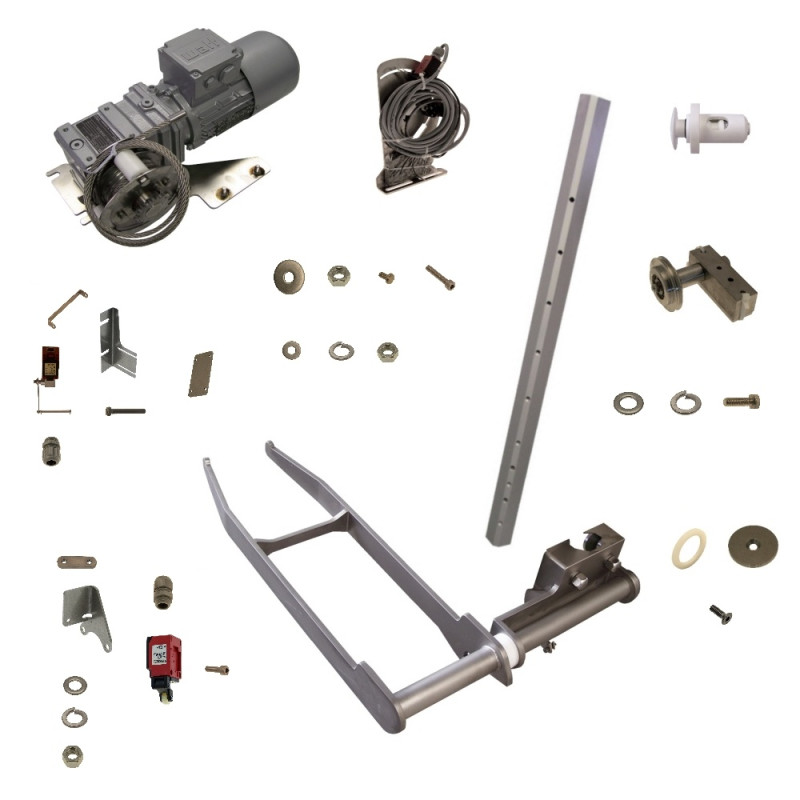

Hebehilfe Assembly IR56 Injector No. 612 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F456311 | Gabel | IR 56 | 1 |
 |
2 | F440955 | Führung | IR 56 | 1 |
 |
3 | F27693 | U-Scheibe | DIN125 A 10,5 | 8 |
 |
4 | F240571 | Führung | 950 x 57,2 x 54,2 | 1 |
 |
5 | F20693 | Sechskantschraube | DIN933 M 10 x 35 | 6 |
 |
6 | F26379 | Federring | DIN127 B 10 | 12 |
 |
7 | F22907 | Scheibe | Ø 10,5 x Ø 35 x 3 | 4 |
 |
8 | F42198 | Umlenkung | IR 56 | 1 |
 |
9 | F440961 | Antrieb | IR 56 | 1 |
 |
10 | F443161 | Taster | IR 56 | 1 |
 |
11 | F29347 | Ring | Ø 50,5 x Ø 70 x 30 | 1 |
 |
12 | F22125 | Ring | Ø 50 x Ø 70 x 5 | 1 |
 |
13 | F240003 | Scheibe | Ø 10,5 x Ø 70 x 6 | 1 |
 |
14 | F22890 | Senkschraube | DIN7991 M 10 x 30 | 1 |
|
15 | F20258 | U-Scheibe | DIN125 A 6,4 | 3 |
|
16 | F24031 | Federring | DIN127 B 6 | 3 |
 |
17 | F20203 | Sechskantmutter | DIN934 M 6 | 3 |
 |
18 | F27786 | Zylinderschraube | DIN912 M 10 x 90 | 2 |
|
19 | F20147 | Sechskantmutter | DIN934 M 10 | 4 |
 |
20 | 106150et | Schalteinheit | IR 56 Facelift | 1 |
 |
21 | F26600 | Scheibe | Ø 8,5 x Ø 20 x 2 | 2 |
|
22 | F21260 | Federring | DIN128 A 8 | 2 |
|
23 | F20259 | Sechskantmutter | DIN934 M 8 | 2 |
 |
24 | F25959 | Flachkopfschraube | DIN85 M 3 x 6 | 4 |
 |
25 | 106000 | Winkel | 198 x 87,5 x 50 x 2,5 | 1 |
 |
26 | F240666 | Blech | 80 x 40 x 3 | 1 |
 |
27 | F240977 | Zylinderschraube | DIN84 M 5 x 35 | 4 |
 |
28 | F240665 | Blech | 93 x 20 x 10 | 1 |
 |
29 | 106002 | Schlaffseilschalter | ENK-SU1Z AHS 270GR VS | 1 |
 |
30 | F29058 | Kabelverschraubung | M 20 x 1,5 | 1 |
 |
31 | F241400 | Aufnahme | 74,9 x 64,5 x 40 x 3 | 1 |
 |
32 | F20375 | Blech | 36 x 12 x 4 | 1 |
 |
33 | F27761 | Zylinderschraube | DIN912 M 5 x 30 | 2 |
|
34 | F20258 | U-Scheibe | DIN125 A 6,4 | 2 |
|
35 | F24031 | Federring | DIN127 B 6 | 2 |
|
36 | F20203 | Sechskantmutter | DIN934 M 6 | 2 |
 |
37 | F29040 | Endschalter | TI2-SU1Z HW 180GR RO13,5 | 1 |
 |
38 | F20948 | Kabelverschraubung | M 16 x 1,5 | 1 |
