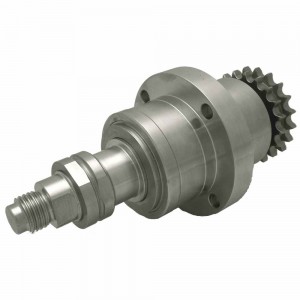

Knife Shaft Exploded View

Type: F41616ex
Brand: Ruhle
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 814
* Knife Shaft Exploded View SR2-Turbo No. 249 and higher:

  Pos. No.  Part No.  Description  Add. Info  Required
1 F26814 Take-up ring Ø 50 x Ø 72 x 20 1
2 F28057 Radial shaft seal Ø 50 x Ø 65 x 8 2
3 F26809 Housing Ø 120 x 111,5 1
4 F23386 Schrägkugellager DIN628 - 3207 2RS 2
