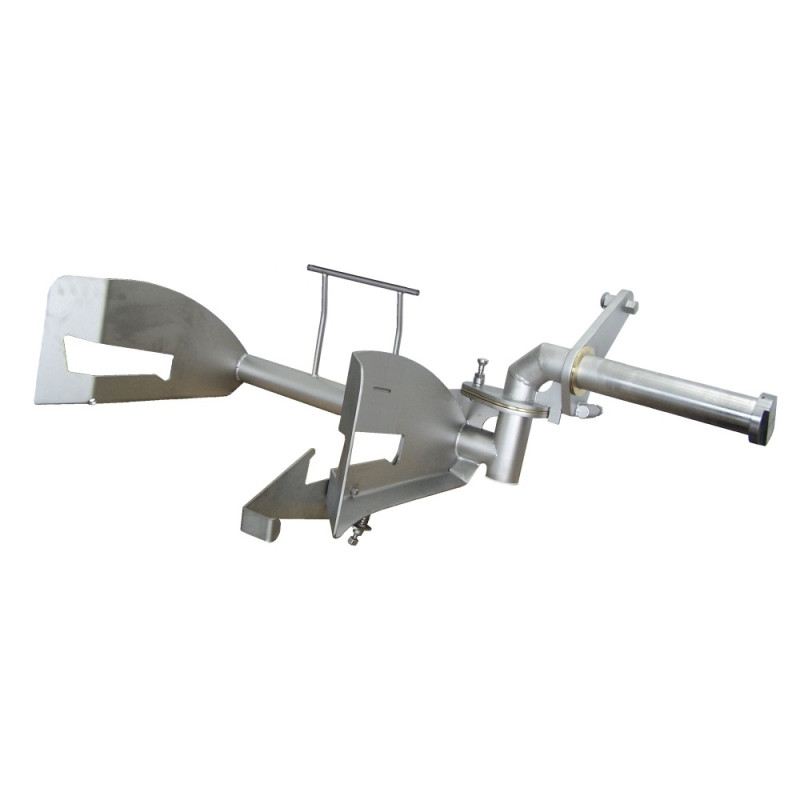

Hebeeinheit Complete
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | 108135 | Aufnahme | MGR 400/900 | 1 |
 |
2 | 107170 | Messingscheibe | 218 x 150 x 5 | 1 |
 |
3 | 108134 | Aufnahme | MGR 400/900 | 1 |
 |
4 | 107458 | Aufnahme | MGR 400/900/1500 | 1 |
 |
5 | 107430 | Deckel | Ø 75 x 16 | 2 |
 |
6 | 107427 | Buchse | Ø 20,5 x Ø 25 x 18,5 | 1 |
 |
7 | 107171 | Rastbolzen | GN 817-12-15-G-Ni | 1 |
 |
8 | 107647 | Pilzknopf | M 6 VA | 1 |
 |
9 | F28727 | Schraube | M 10 x 92 | 1 |
 |
10 | F245222 | Ring | Ø 10,5 x Ø 19 x 4,5 | 2 |
 |
11 | F20811 | Hutmutter | DIN917 M 10 | 3 |
 |
12 | F20208 | Senkschraube | DIN7991 M 8 x 20 | 1 |
 |
13 | F22907 | Scheibe | Ø 10,5 x Ø 35 x 3 | 4 |
 |
14 | 107433 | Ring | Ø 40,2 x Ø 60 x 12 | 1 |
 |
15 | 107434 | Mutter | M 30 x 1,5 x 10 | 1 |
 |
16 | 107435 | Mutter | M 30 x 1,5 x 10 | 1 |
 |
17 | 107413 | Scheibe | Ø 8,5 x Ø 35 x 1 | 1 |
 |
18 | 107638 | Scheibe | Ø 76,5 x Ø 110 x 3 | 2 |
 |
19 | 107720 | Deckel | Ø 100 x 28,5 | 1 |
 |
20 | F245225 | Druckfeder | d2,0 x De18 x 68 | 1 |
 |
21 | F22141 | Zylinderschraube | DIN912 M10 x 25 | 2 |
 |
22 | F25848 | Zylinderschraube | DIN912 M 5 x 16 | 1 |
 |
23 | F25432 | Gewindestift | DIN914 M 6 x 10 | 1 |
 |
24 | F20134 | Hutmutter | DIN917 M 8 | 1 |
 |
25 | 107938 | Bolzen | Ø 40 x 89,5 | 1 |
 |
26 | F26720 | Hutmutter | DIN917 M 20 | 1 |
