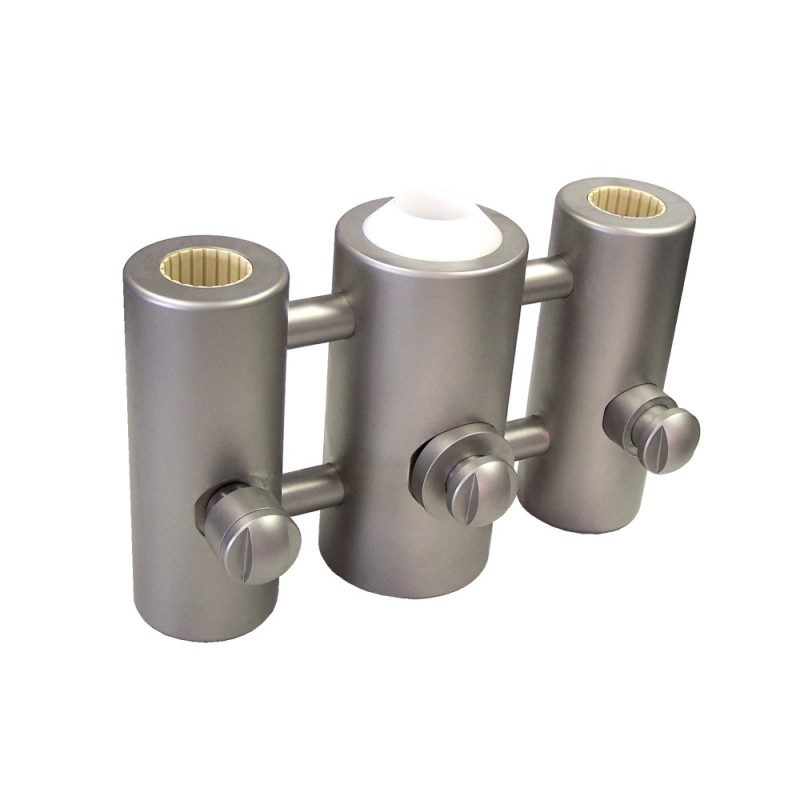

Spindellagerung Exploded View - MGR 400 No. 12 and higher
Type: 107540
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2530
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2530
Spindellagerung Exploded View
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | 107549 | Aufnahme | Ø 125 x 250 | 1 | |
 |
2 | 107553 | Bolzen | Ø 30 x 68 | 4 | |
 |
3 | F20718 | Zylinderschraube | DIN912 M12 x 65 | 4 | |
 |
4 | 107551 | Aufnahme | Ø 100 x 250 | 1 | |
 |
5 | 107552 | Aufnahme | Ø 100 x 250 | 1 | |
 |
6 | 107554 | Spindelmutter | TR 50 x 8 x Ø 80 x 100 | 1 | |
 |
7 | 107555 | Buchse | Ø 50,5 x Ø 90 x 48,8 | 1 | |
 |
8 | 107163 | Gleitlager | JUM-01-50 | 4 | |
 |
9 | 107565 | Bundbolzen | Ø 25 x 41,5 | 1 | |
 |
10 | 107566 | Ring | Ø 35,1 x Ø 70 x 15 | 1 | |
 |
11 | 107567 | Ring | Ø 35,1 x Ø 50 x 24 | 2 | |
 |
12 | 107568 | Bolzen | Ø 50 x 78,5 | 1 | |
 |
13 | 107569 | Bolzen | Ø 50 x 77 | 2 | |
 |
14 | 107539 | Spindellagerung | MGR 400/900/1500 | 1 |
