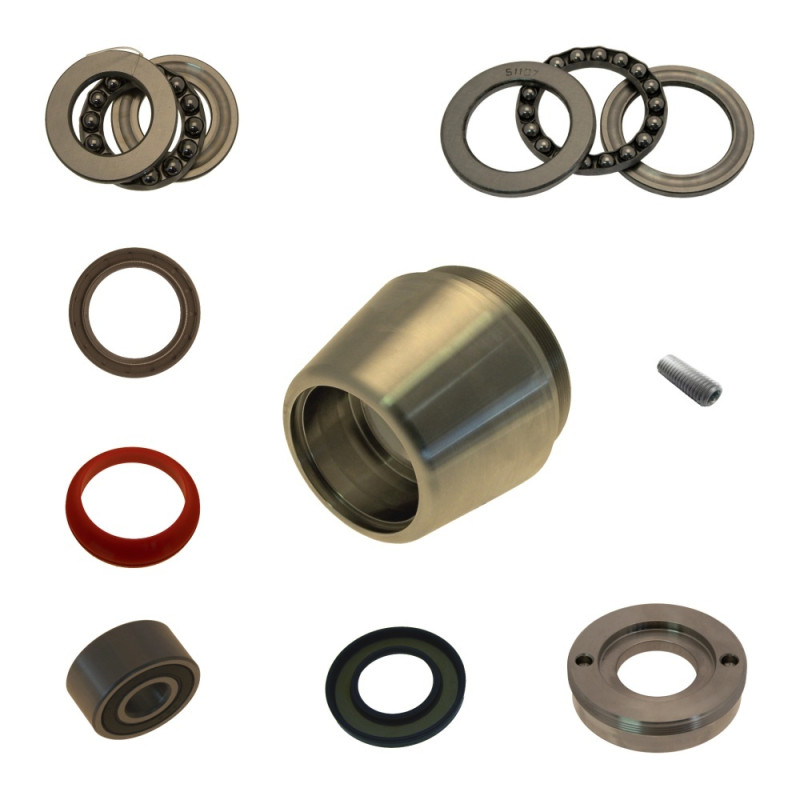

Flansch Exploded View
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | 107615 | Aufnahme | Ø 100 x 85 | 1 |
 |
2 | F23387 | Axial-Rillenkugellager | DIN711 51207 | 1 |
 |
3 | 107546 | Radial-Wellendichtring | Ø 50 x Ø 62 x 7WA | 1 |
 |
4 | 107152 | Abstreifer | Ø 49,5 x Ø 66 x 14 | 1 |
 |
5 | F23386 | Schrägkugellager | DIN628 - 3207 2RS | 1 |
 |
6 | F28040 | Radial-Wellendichtring | Ø 35 x Ø 62 x 7 | 1 |
 |
7 | 107614 | Mutter | M 80 x 1,5 x Ø 36 x 20 | 1 |
 |
8 | F24551 | Axial-Rillenkugellager | DIN711 51107 | 1 |
 |
9 | F25432 | Gewindestift | DIN914 M 6 x 10 | 1 |
