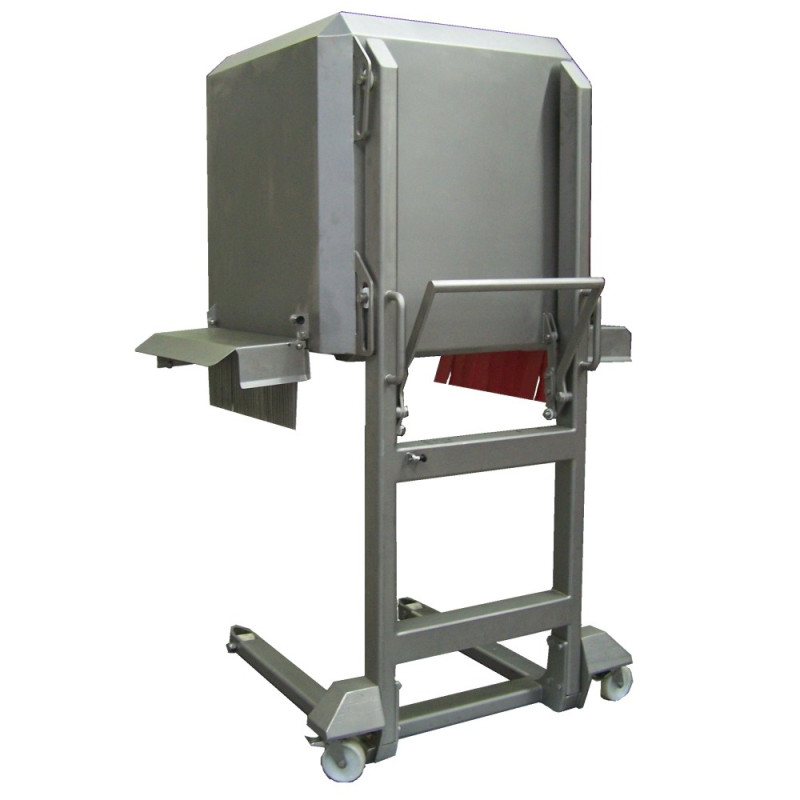

Hodded Carrier Assembly Ruhle IR112 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F450165 | rack | IR 112 | 1 |
 |
2 | 104529 | Rolle | IR 112 | 2 |
 |
3 | F252735 | Shaft | Ø 35 x 109 | 2 |
 |
4 | F20543 | Washer | DIN125 A 21 | 2 |
 |
5 | F26720 | Cap nut | DIN917 M 20 | 2 |
 |
6 | F26742 | Guide roller | Ø 125 mm | 2 |
 |
7 | F22888 | Washer | DIN125 A 8,4 | 8 |
 |
8 | F21260 | Spring lock washer | DIN127 B 8 | 8 |
 |
9 | F20455 | Hexagonal bolt | DIN933 M 8 x 25 | 8 |
 |
10 | F450183 | rack | IR 112 | 1 |
 |
11 | F252180 | Hexagonal bolt | DIN931 M12 x 85 | 8 |
|
12 | F20210 | Spring lock washer | DIN127 B 12 | 8 |
|
13 | F20202 | Washer | DIN125 A 13 | 8 |
 |
14 | F24901 | Disc | Ø 12,5 x Ø 35 x 3 | 4 |
 |
15 | F20812 | Cap nut | DIN917 M 12 | 4 |
 |
16 | 104528 | Hood | IR 112 | 1 |
 |
17 | F28990 | Bolt | Ø 18 x 40,8 | 4 |
 |
18 | 100321 | Rolle | Ø 18,2 x Ø x 30 x 28 | 4 |
 |
19 | 100320 | Ring | Ø 6,5 x Ø 27 x 8,2 | 4 |
 |
20 | F20264 | Countersunk bolt | DIN963 M 6 x 16 | 4 |
 |
21 | F250192 | Ring | Ø 30,1 x 60 x 8 | 4 |
 |
22 | 104525 | Clamp | IR 112 | 1 |
 |
23 | F250219 | Ring | Ø 15,2 x 35 x 3 | 4 |
 |
24 | F250218 | Bolt | Ø 35 x 45.5 | 2 |
 |
25 | F450217 | Connecting rod | IR 112 | 2 |
|
26 | F20202 | Washer | DIN125 A 13 | 1 |
 |
27 | F250264 | Bushing | Ø 12 x Ø 16 x 9 | 1 |
 |
28 | F29233 | Locking bolt | GN 617-6-A-NI | 1 |
