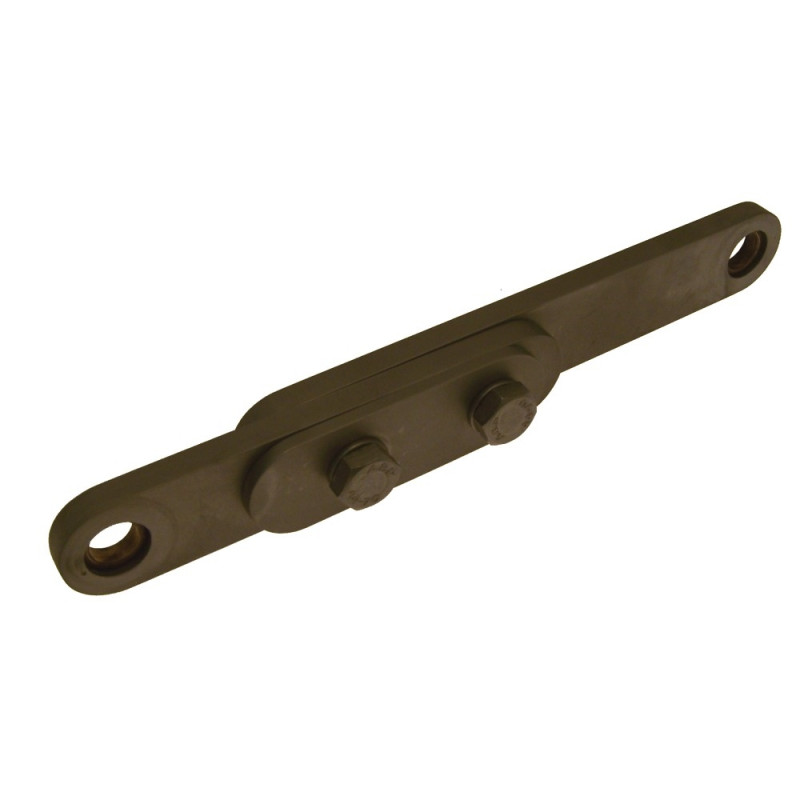

Connecting Rod Exploded View - IR 112

Type: F450217
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2096

* Connecting Rod Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Connecting Rod Exploded View - IR 112

Type: F450217
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2096

* Connecting Rod Exploded View IR 112:
--F250220 Plate / Sheet
--F250222 Plate / Sheet
--F23874 Slide bushing
--F250223 Plate / Sheet
--F20210 Spring lock washer
--F21042 Hexagonal bolt

Connecting Rod Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F250220	Plate / Sheet	222,5 x 35 x 10	1
2	F250222	Plate / Sheet	172,5 x 35 x 10	1
3	F23874	Slide bushing	Ø 15 x Ø 20 x 9,8	2
4	F250223	Plate / Sheet	105 x 35 x 5	1
5	F20210	Spring lock washer	DIN127 B 12	2
6	F21042	Hexagonal bolt	DIN933 M12 x 30	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Connecting Rod Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	F250220	Plate / Sheet	222,5 x 35 x 10	1
2	F250222	Plate / Sheet	172,5 x 35 x 10	1
3	F23874	Slide bushing	Ø 15 x Ø 20 x 9,8	2
4	F250223	Plate / Sheet	105 x 35 x 5	1
5	F20210	Spring lock washer	DIN127 B 12	2
6	F21042	Hexagonal bolt	DIN933 M12 x 30	2
