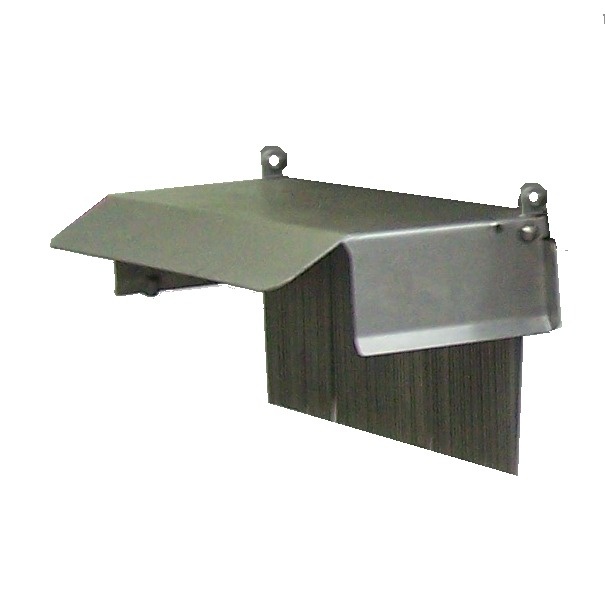

Protective Guard Exploded View 1

Type: F450169
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2094

* Protective Guard Exploded View 1 IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Protective Guard Exploded View 1

Type: F450169
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2094

* Protective Guard Exploded View 1 IR 112:
--100293 Protective guard
--F250229 Lug
--F28258 Ring
--F250228 Shaft
--F251590 Disc
--102238 Disc
--102239 Disc
--102240 Disc
--F27693 Washer
--F20811 Cap nut
--105648 Bushing
--F20426 Solenoid

Protective Guard Exploded View 1

Pos. No.	Part No.	Description	Add. Info	Required
1	100293	Protective guard	IR 112	1
2	F250229	Lug	271 x 31 x 5	81
3	F28258	Ring	Ø 11 x Ø 22 x 3,4	80
4	F250228	Shaft	Ø 10 x 722	1
5	F251590	Disc	Ø 10,5 x Ø 22 x 0,65	2
6	102238	Disc	Ø 10,5 x Ø 22 x 1	2
7	102239	Disc	Ø 10,5 x Ø 22 x 1,5	2
8	102240	Disc	Ø 10,5 x Ø 22 x 2	2
9	F27693	Washer	DIN125 A 10,5	2
10	F20811	Cap nut	DIN917 M 10	2
11	105648	Bushing	Ø 12 x 9	1
12	F20426	Solenoid	Ø 10 x 10	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Protective Guard Exploded View 1

Pos. No.	Part No.	Description	Add. Info	Required
1	100293	Protective guard	IR 112	1
2	F250229	Lug	271 x 31 x 5	81
3	F28258	Ring	Ø 11 x Ø 22 x 3,4	80
4	F250228	Shaft	Ø 10 x 722	1
5	F251590	Disc	Ø 10,5 x Ø 22 x 0,65	2
6	102238	Disc	Ø 10,5 x Ø 22 x 1	2
7	102239	Disc	Ø 10,5 x Ø 22 x 1,5	2
8	102240	Disc	Ø 10,5 x Ø 22 x 2	2
9	F27693	Washer	DIN125 A 10,5	2
10	F20811	Cap nut	DIN917 M 10	2
11	105648	Bushing	Ø 12 x 9	1
12	F20426	Solenoid	Ø 10 x 10	2
